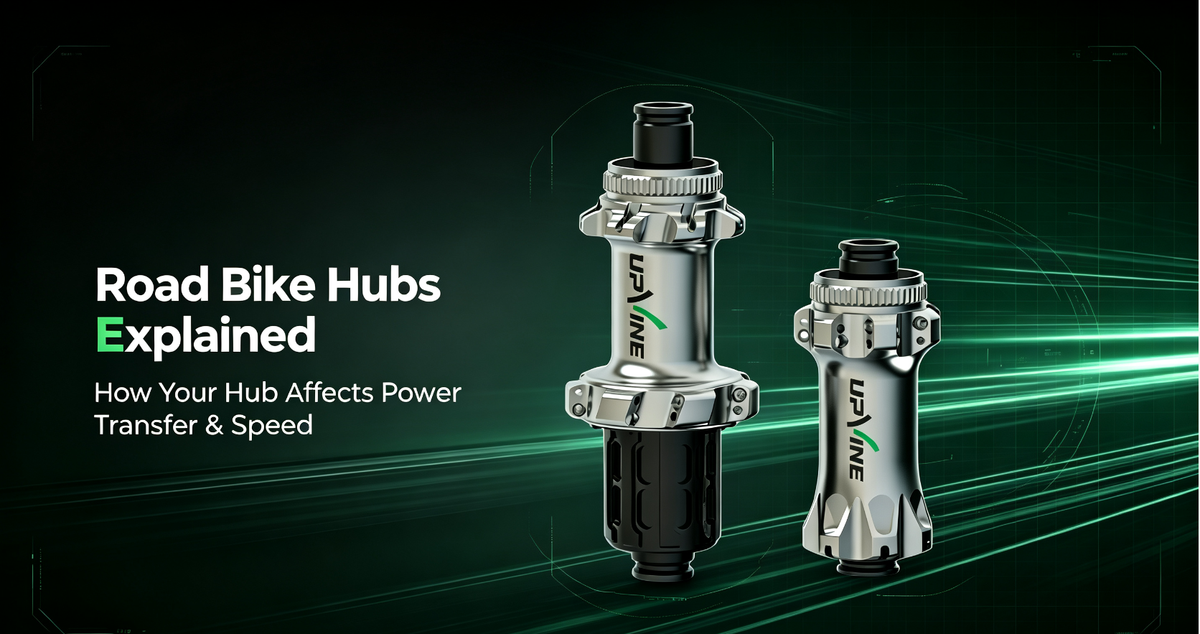

Road Bike Hubs Explained: How Your Hub Affects Power Transfer & Speed

The hub is located at the exact center of the wheel. It connects to the rim via spokes and is secured to the dropouts of the frame fork or rear triangle through its axle. It serves not only as the rotational pivot for the entire wheel but also bears the rider's weight and various impact forces from the road. A high-quality hub can significantly reduce rolling resistance, provide smooth rotation, and ensure precise power transmission.

From a historical perspective, hubs have evolved from simple wooden structures in the early 19th century to the precision components made from materials like aluminum, steel, and carbon fiber we see today. Key innovations, such as quick-release mechanisms and sealed bearings, have vastly improved their performance and durability.

Internal Structure and Operating Principles

As a rotating system, a hub's performance is determined by the cooperative function of its internal components.

• Axle

The backbone of the hub, it is fixed to the frame via dropouts and supports the rider's weight and forces applied during riding. Axles can be hollow or solid (quick-release and thru-axle designs), influencing weight and the ease of installation or removal.

• Bearings

These are critical for rotational smoothness and are mainly divided into two types:

Cup and Cone Bearings (Loose Ball): Composed of loose balls, a cup, and a cone, they allow for preload adjustment to eliminate play. They offer good maintainability but relatively poorer sealing.

Cartridge Bearings: These are sealed, unitized components. They feature excellent dust and water resistance and lower friction, making them the mainstream choice in modern hubs. They generally have longer maintenance intervals.

• Hub Shell

This is the main body that houses the bearings and connects to the spokes. It needs to be sufficiently strong to withstand the forces transmitted by the spokes while also prioritizing lightweight construction. Materials like aluminum alloy and carbon fiber are often used to balance strength and weight.

• Flanges

These are located on both sides of the hub shell and are used to connect the spokes. Their diameter, spacing, and drilling angles determine the lacing pattern of the spokes, which in turn affects the wheel's lateral rigidity and load distribution.

Freehub Body and Ratchet Mechanism

This is the core of power transmission unique to the rear hub. Its internal mechanism is mainly divided into two types:

Pawl System: This system uses several (typically 2 to 6) spring-loaded pawls inside the freehub body. When pedaling, the springs push the pawls outward to engage with the ratchet ring on the hub shell, transmitting power. While coasting, the pawls are pressed back by the ratchet ramps and slide over the teeth, producing the characteristic clicking sound, allowing the wheel to rotate freely.

Ratchet System: This system uses two toothed ratchet rings that engage with each other. They are concentrically arranged and pressed together by a strong spring. DT Swiss is a well-known proponent of this system. When pedaling, the teeth of both rings mesh completely, transmitting driving force to the wheel. While coasting, the inclined tooth surfaces allow them to slide over each other against the spring pressure. The contact points are distributed across the entire ring face, resulting in a larger engagement area.

Theoretically, the ratchet system offers more uniform and reliable force transmission. However, in practice, well-engineered pawl systems are also highly durable. In recent years, ratchet systems with higher engagement points have become a mainstream trend in high-performance hubs due to their faster power response and distinctive sound.

Core Performance Parameter: Engagement Points and Engagement Angle

For high-performance rear hubs, the number of engagement points in the ratchet system is a key metric. It refers to the number of times the pawls can engage with the ratchet teeth in one full rotation of the drive system.

• Engagement Angle = 360° / Number of Engagement Points

For example, 36 engagement points correspond to a 10° engagement angle, while 72 engagement points reduce this angle to 5°. A smaller engagement angle means a shorter dead zone in power response, which is crucial for riders who need frequent, rapid acceleration (e.g., in racing or technical climbing).

• Hub Materials

The material is the foundation of a hub's performance, with different materials offering trade-offs in strength, weight, and durability.

Aluminum Alloy: The most mainstream material, offering an excellent strength-to-weight ratio, good corrosion resistance, and cost-effectiveness. It is widely used across all types of bicycles.

Steel: Known for durability and strength, it is commonly used for hub axles and ratchet teeth in the freehub body. It is particularly suitable for heavy-duty riding subject to high torque, such as loaded touring.

Carbon Fiber: Focuses on ultimate light weight and high rigidity. It is typically used in top-tier racing hubs to enhance acceleration and climbing response.

Ceramic: Refers specifically to ceramic bearings. They have a significantly lower coefficient of friction than steel bearings, providing smoother rotation and higher transmission efficiency. However, they are expensive and typically found in the competitive sector.

Key Specifications and Compatibility

The hub's dimensional specifications must perfectly match the frame; this is a prerequisite for selection.

• Axle Systems:

Quick Release (QR): Uses a hollow axle and a cam-lever system for quick installation and removal. Commonly used on road bikes.

Thru-Axle: Uses a thicker axle rod that screws directly into the frame, providing increased rigidity and better alignment. It has become the standard on modern disc-brake mountain bikes.

Compared to some traditional road bikes that still use rim brakes and quick-release axles to minimize weight, models like Gravel and Cyclocross (CX) demand greater wheel strength and rigidity to handle complex terrain and higher impact forces. Therefore, they commonly adopt disc brakes and thru-axle configurations.

• Boost and Super Boost Standards:

Boost: This standard has become increasingly popular alongside the prevalence of 29-inch wheels. By widening the hub flange spacing (front 110mm, rear 148mm), it increases the wheel's lateral rigidity and provides more tire clearance for the frame.

Super Boost: This further increases the rear hub spacing to 157mm, creating an even stronger wheel structure. It is mainly used in heavy-duty Enduro and Downhill (DH) bikes that demand extremely high rear wheel rigidity.

If you need to use a non-Boost hub on a Boost frame, you may need to install conversion end caps to compensate for the size difference. However, it is crucial to ensure compatibility between the conversion parts, the hub, and the frame, and to verify stability after installation. It is always recommended to choose a hub that matches your frame's specifications for safety and optimal performance.

Common Specifications

How to Measure Thru-Axle Size:

Use a caliper to measure the diameter of the axle shaft at the point where it contacts the hub end caps. Common sizes are 12mm or 15mm. Some axles are "stepped" (thinner in the middle, thicker at the ends), so ensure you measure the diameter on the clamping area.

Measure the effective length of the thru-axle. The effective length is the straight-line distance from the clamping surface of the fixing nut to the other end of the axle, excluding the tool-interface portion of the nut.

Disc Brake Mounts:

Different hubs are designed with various disc rotor mounting systems to suit different standards and offer specific advantages in ease of installation, alignment precision, and performance.

6-Bolt (ISO): Uses a 6-bolt pattern to mount the disc brake rotor. The rotor is secured to the hub with six screws, providing a secure and widely compatible standard.

Center Lock (CL): The disc rotor is slid onto a splined interface on the hub and then secured by a lockring. This simplifies rotor installation and removal. Shimano's Center Lock hubs use a splined interface to mount the disc rotor.

6-bolt rotors can be mounted on Center Lock hubs using an adapter, but Center Lock rotors generally cannot be mounted on 6-bolt hubs.

Categories of Bicycle Hubs

Hubs can be classified from multiple perspectives:

• By Position (Front/Rear)

Front Hub: Its core function is to support the front wheel and ensure smooth rotation. Its structure mainly includes the hub shell, axle, and bearing system. As it is not involved in power transmission, the design focuses more on lightweight and low rolling resistance.

Rear Hub: As part of the drivetrain, the rear hub adds power transmission functionality to its rotating base. Therefore, in addition to all the basic components of a front hub, it integrates a freehub body and ratchet mechanism. This allows it to mount the cassette and perform the key functions of "pedal-driven engagement and freewheeling coasting."

• By Brake Type

Disc Brake Hub: Designed specifically for disc brake systems. They feature a mounting interface (e.g., 6-Bolt or Center Lock) on one side of the hub shell to secure the disc rotor. Its purpose is to fix the rotor and ensure braking stability.

Rim Brake Hub: Designed for rim brake systems, which rely on the rim's sidewall as the braking surface. Since there is no need to mount a disc rotor, their structure is simpler and lighter.

• By Spoke Fixation Method

J-Bend Hub: Designed to be used with J-bend spokes. They are easy to service and compatible with various wheel lacing patterns, making them a popular choice for many bicycle types.

Straight-Pull Hub: Used with straight spokes that have no bend. They can reduce stress concentration at the spoke elbow and are often lighter.

• By Bearing Type

Cartridge Bearing Hubs: These use independent, pre-packaged, sealed bearing units. Each unit is a complete assembly with an inner ring, outer ring, balls, and rubber seals on both sides. Therefore, the sealing of cartridge bearing hubs is vastly superior to that of cup-and-cone hubs. Because the balls are sealed within the unit and don't directly contact the hub's internal parts, they don't wear down the hub itself during movement, offering better durability. When a cartridge bearing hub develops resistance after prolonged use, maintenance is very straightforward: simply replace the entire sealed bearing unit.

Bearing Materials:

Steel Bearings:

This is the most mainstream and economical choice, offering high hardness and durability. Advantages include high strength, low cost, and good impact resistance. Disadvantages are relatively higher weight and a slightly higher coefficient of friction, potentially affecting efficiency and performance.

Ceramic Bearings:

Utilize ceramic balls with an extremely smooth surface, significantly reducing rolling resistance and enhancing rotational smoothness. Ceramic balls are lighter and highly corrosion-resistant. However, they are more expensive and more brittle. They can crack under improper impact. They are designed for riders seeking ultimate performance.

Bearing Grades:

Bearing precision is often indicated by the ABEC rating (e.g., ABEC 1, 3, 5, 7, 9). Generally, a higher number indicates tighter manufacturing tolerances (for dimensions like inner diameter, outer diameter, and raceway runout), theoretically providing more stable performance at high speeds and lower noise. For bicycles, the bearing material is more important than the ABEC grade. ABEC 3 or 5 precision is generally sufficient, and the improvement offered by higher grades is negligible.

Cup and Cone Bearing Hubs (Loose Ball): These use a non-sealed, loose-ball bearing system.

Core Components:

• Cone: A conical nut threaded onto the axle, with its angled surface serving as a raceway for the balls.
• Cup: A bowl-shaped recess pressed into the hub shell, which, along with the cone, forms the ball raceway.
• Loose Balls: Uncontained steel balls placed between the cone and the cup.
• Dust Cap: A simple metal or plastic cover that primarily functions as a dust shield; its sealing capability is limited.

This system allows for eliminating play between the balls and the raceway while ensuring smooth rotation by adjusting the tightness of the cone. Cup-and-cone hubs generally have poorer sealing. In harsh riding conditions, they are less effective at blocking mud and water and require regular cleaning and regreasing to ensure durability.

By Bicycle Type

Hubs are also classified by bicycle type to meet the specific performance requirements and conditions of each cycling discipline. This ensures that each hub is optimized in terms of durability, weight, brake system, and drivetrain compatibility to enhance the overall performance of the bike.

• Road Bike Hubs: Designed specifically for ultimate lightweight and low rolling resistance.
• Mountain Bike (MTB) Hubs: Emphasize structural strength, sealing, and durability. They commonly use sealed cartridge bearings, thru-axle specifications, and disc brake mounts to ensure reliability in harsh trail conditions.
• Gravel Bike Hubs: Created for mixed-terrain riding, they balance lightweight with robustness for both paved and unpaved roads. They typically support disc brakes and thru-axles for better stability and handling across varying surfaces.
• Track/Fixed-Gear Hubs: Provide direct power transmission without a freehub body. They often use bolt-on axles for secure attachment.
• BMX Hubs: Designed for high-intensity riding and stunt performance, they must withstand significant impact forces. They feature robust bolt-on axles to ensure safety and stability.
• E-Bike Hubs: Must handle the additional weight and high torque generated by the motor. They feature reinforced structures and high-load bearings, and typically come with disc brake mounts and thru-axles for long-term reliability.

How to Choose the Right Hub for Your Bike？

Selecting the correct hub is crucial to ensure optimal performance, durability, and compatibility with your bicycle. The right hub can significantly impact your bike's efficiency, speed, and handling. Here is some advice to help you choose the right hub.

• Riding Needs: Determine performance priorities (lightweight, rigidity, durability, or cost-effectiveness) based on your primary riding style (racing, off-roading, long-distance touring, commuting).
• Determine Hub Compatibility: Precisely measure your frame/fork spacing, axle type (quick-release/thru-axle specifications), and disc brake mount (6-Bolt/Center Lock).
• Engagement System: Higher engagement points provide snappier power response. Pawl systems are common and reliable, while planetary ratchet systems are often more durable and require less frequent maintenance.
• Spoke Count: Match the hub's spoke count to your wheel to ensure adequate strength.
• Material and Weight: Weigh the trade-offs between weight and strength within your budget.
