UPVINE

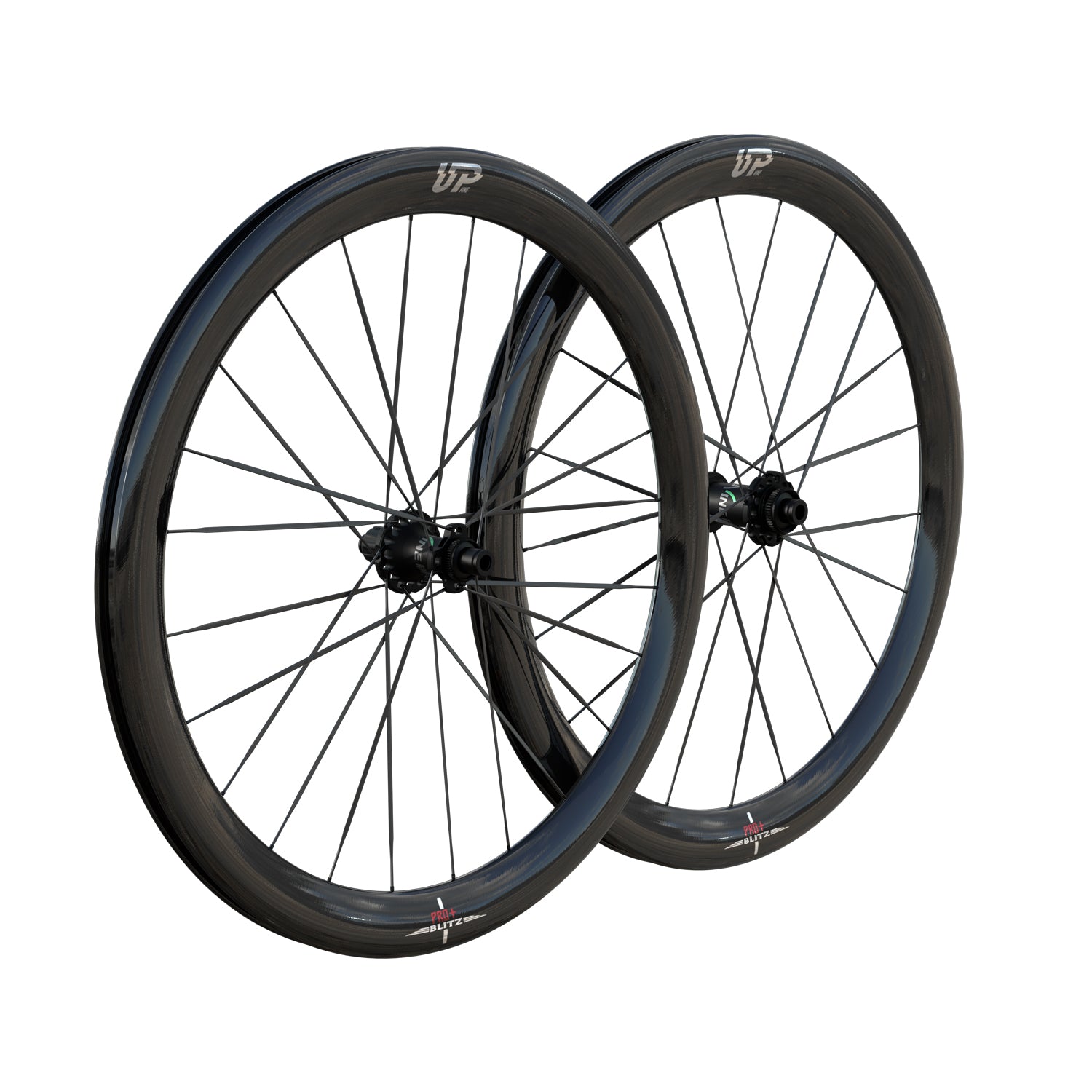

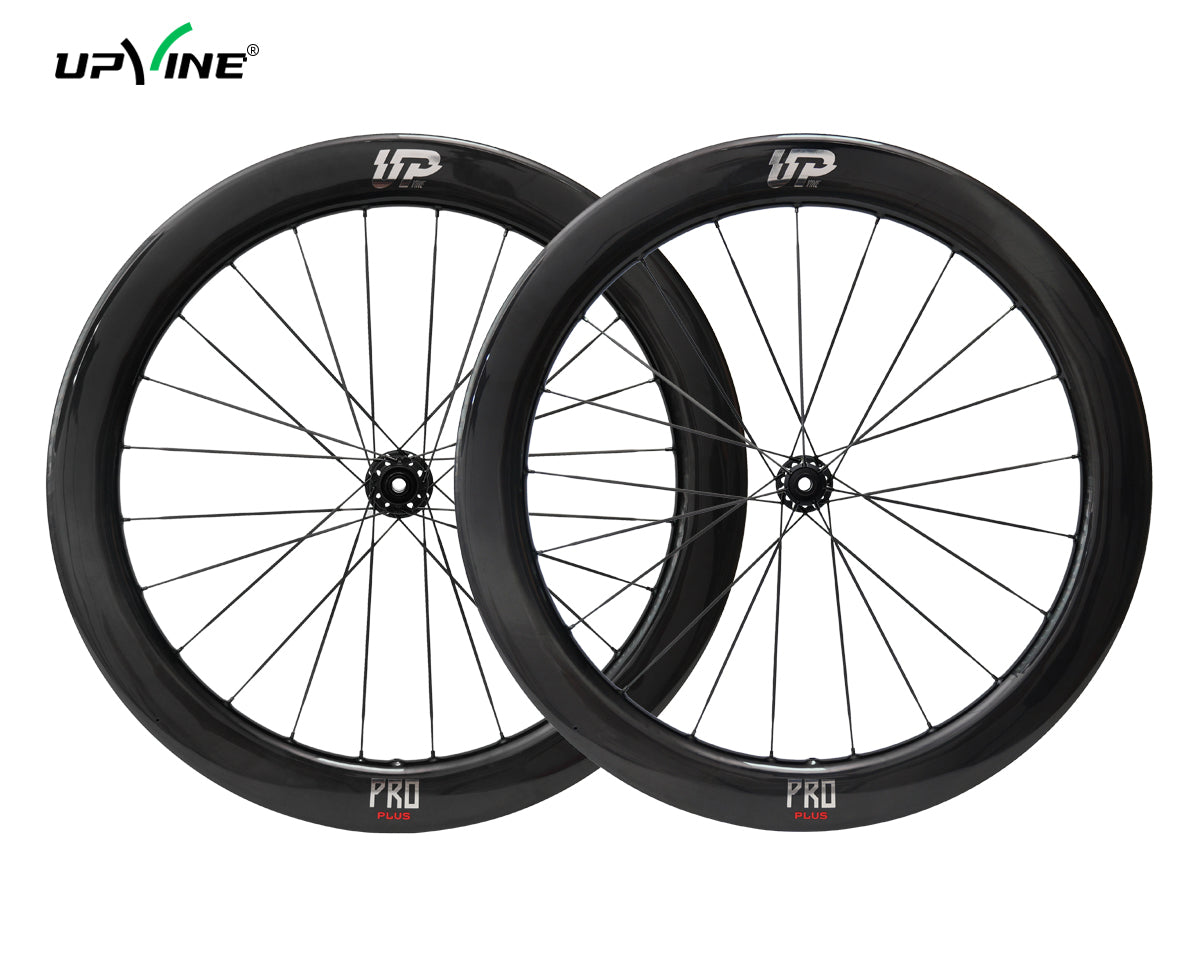

Pro Plus Disc Wheelset
- Regular price
- $2,699.00 USD
- Sale price
- $2,699.00 USD
- Regular price
-
$2,489.00 USD
Shipping calculated at checkout.
-
Balanced Stiffness & Comfort
Stable ride quality with optimized stiffness and comfort. -
Crosswind Stability
Aerodynamic rims improve handling in side winds. -
Tubeless Ready
Preinstalled rim tape; clean inner rim for easy setup. -

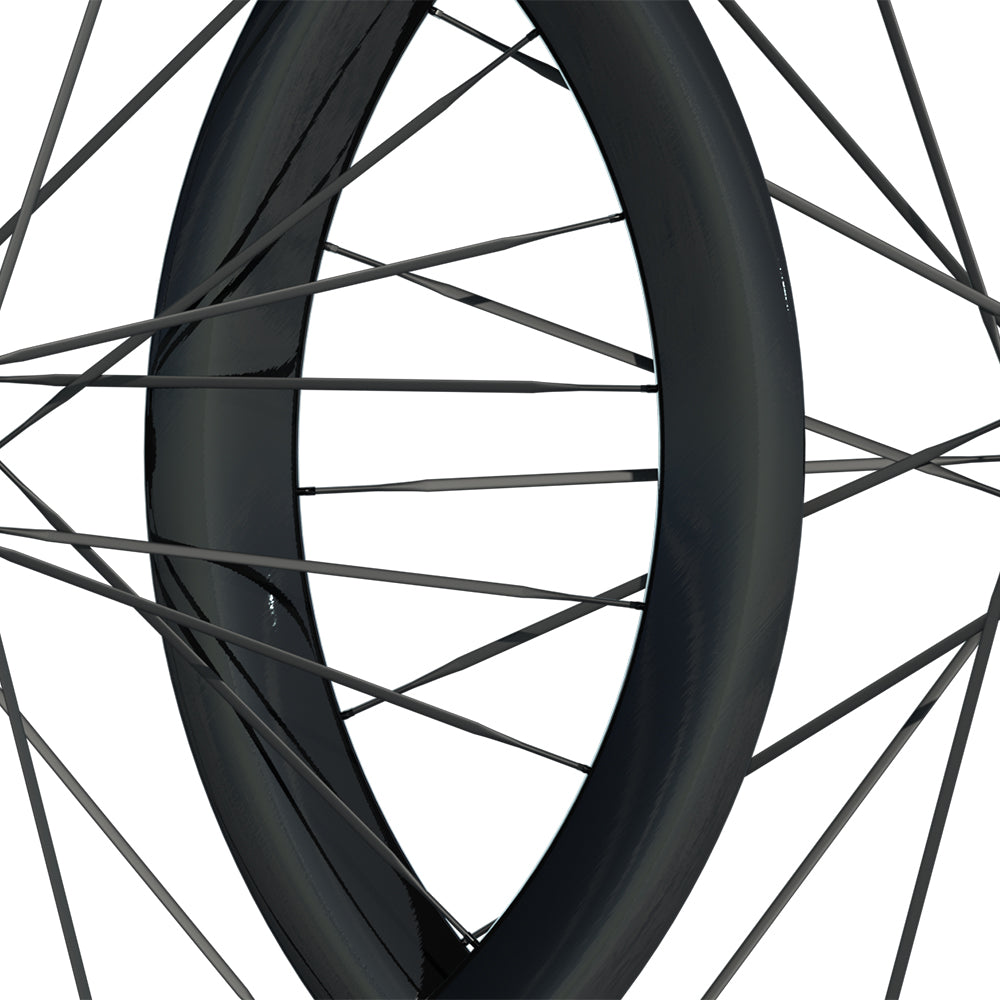

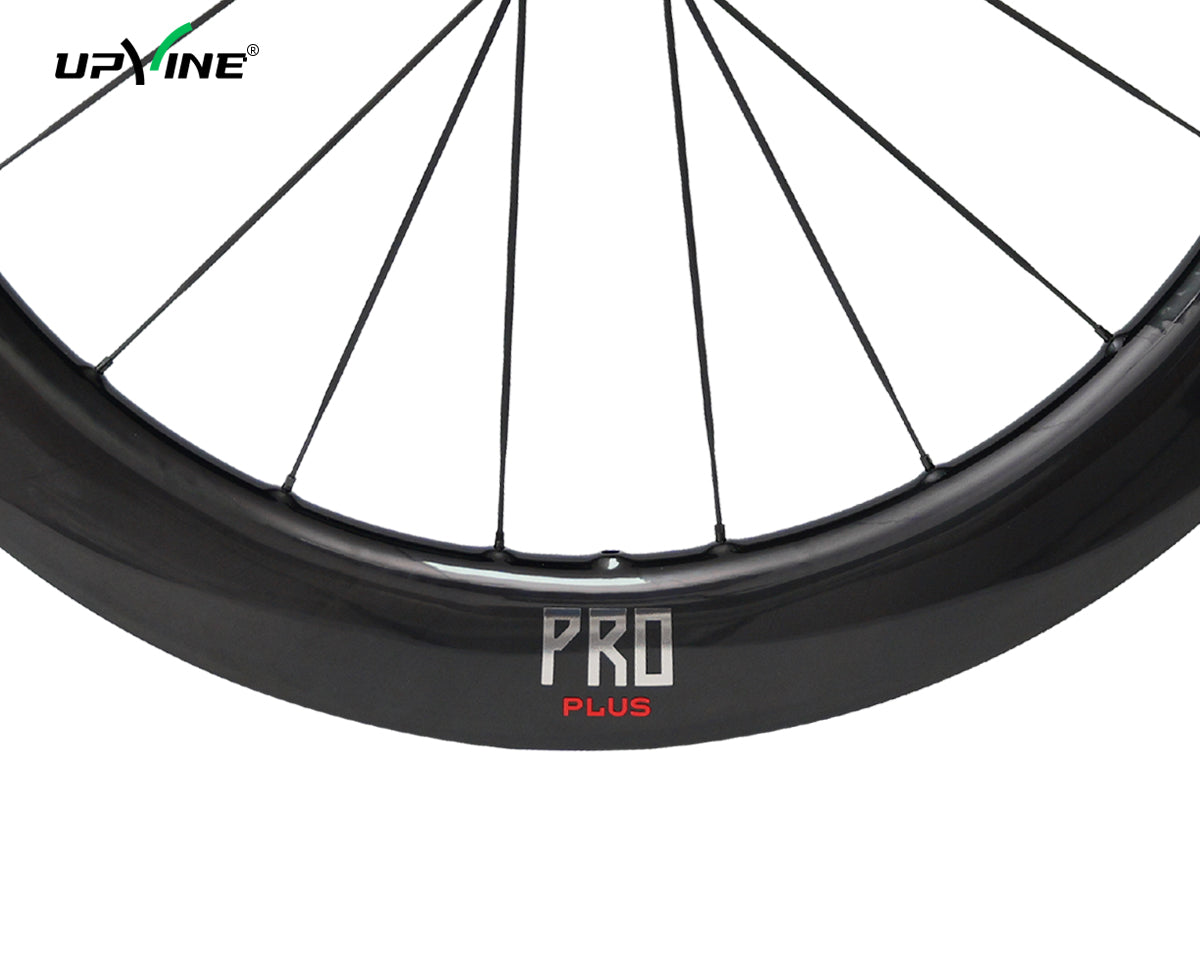

Asymmetric Rims
Wider rear rim enhances aerodynamics and ride comfort. -

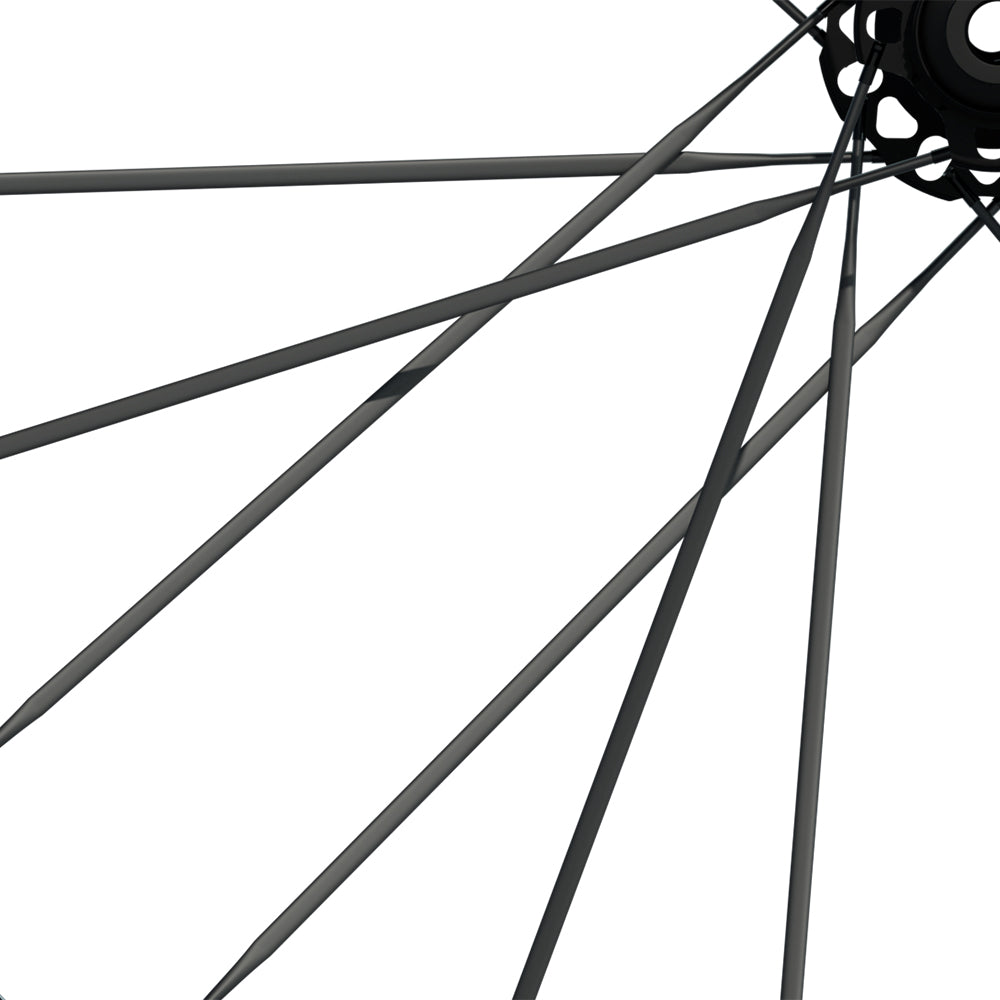

Lightweight High-Strength Spokes
Composite fiber spokes combine light weight and durability. -

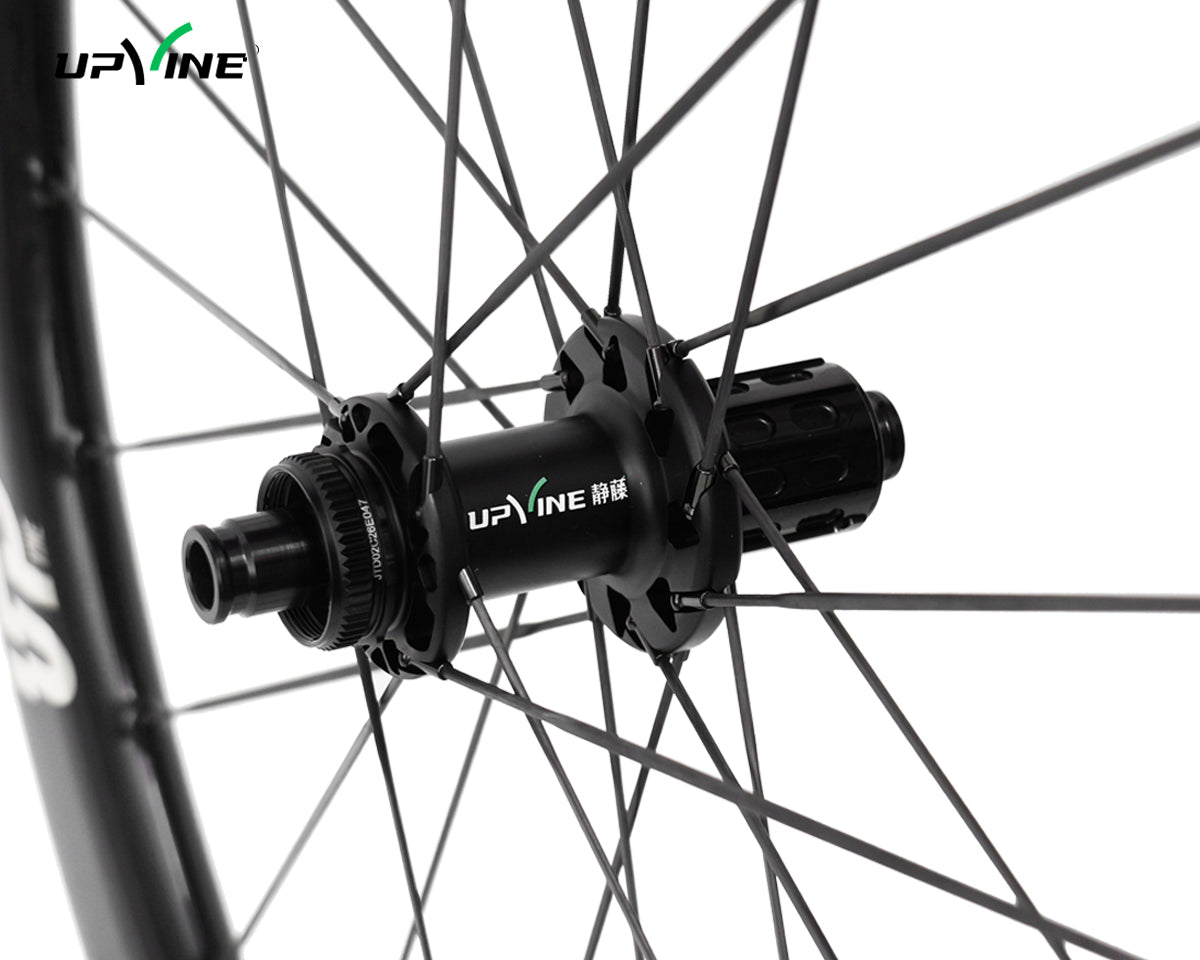

Precision Hub & Tension
Ratchet system; 130 KGF balanced spoke tension for long-term stability. -
2-Year Official Warranty
Free replacement of rim, spokes, and hub once each; excludes misuse.
The UPVINE® brand is rapidly expanding across countries and regions worldwide.
CONTACT US
| Model | UPVINE® — Pro Plus | |
|---|---|---|

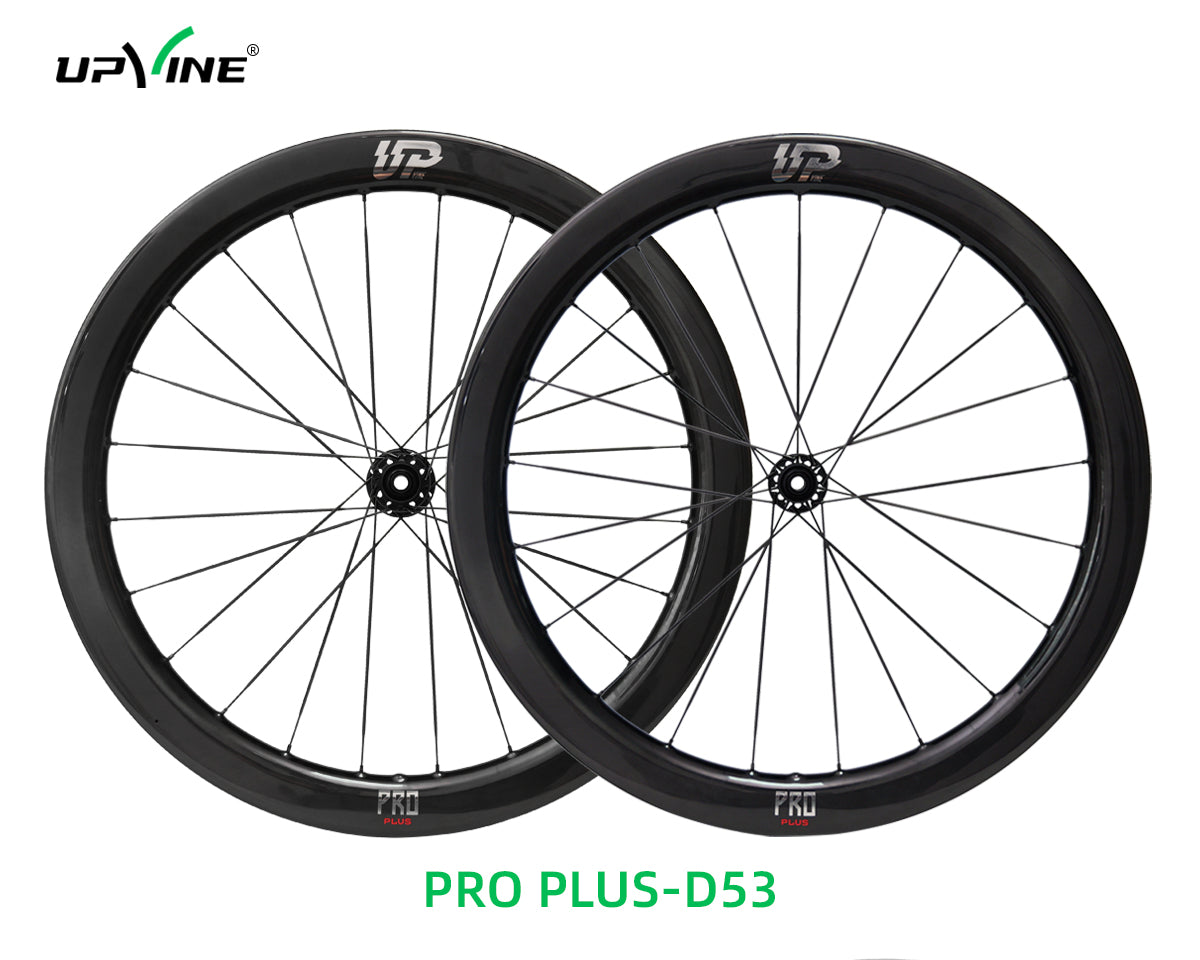

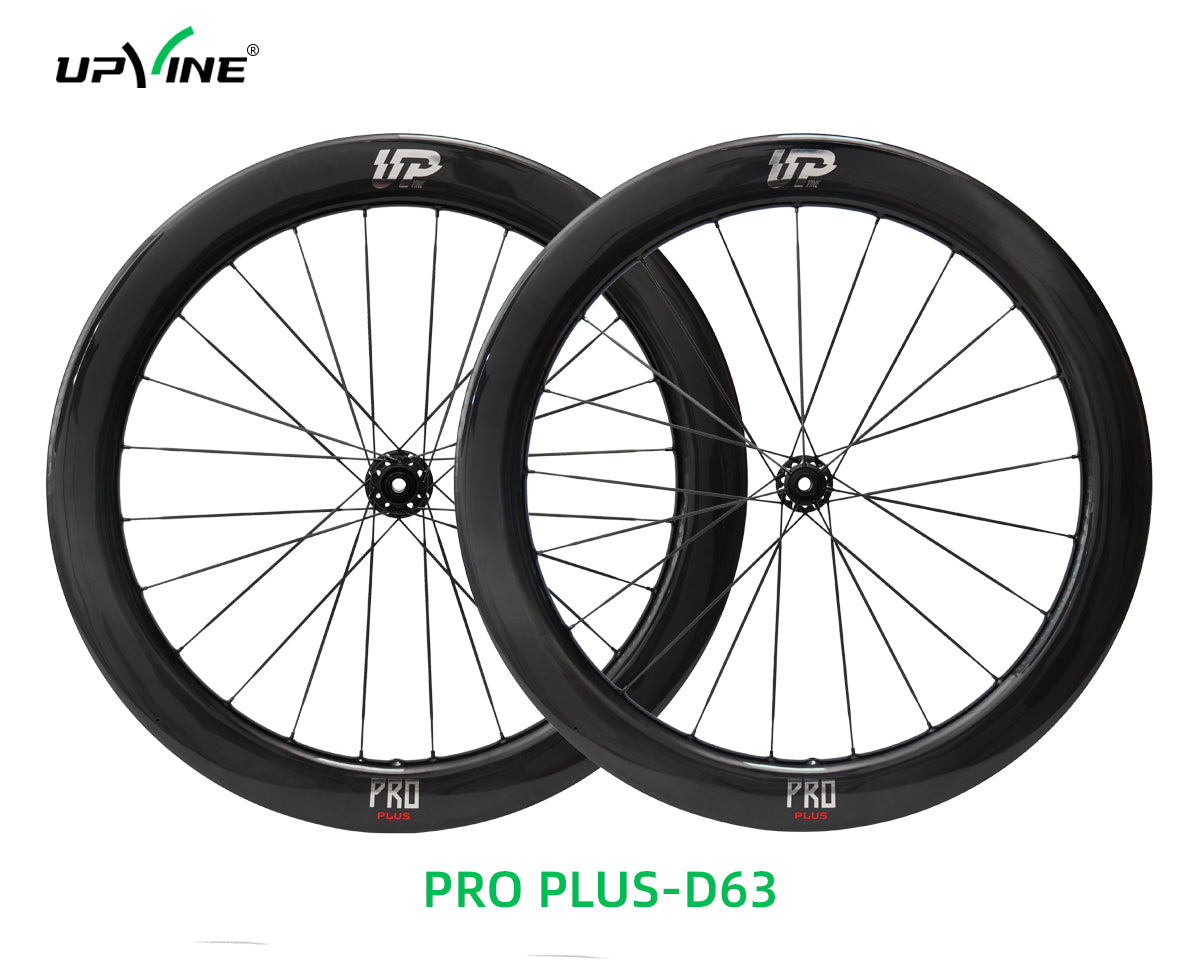

| Rim Depth | 53mm | 63mm |
| Rim Material | Toray T700 & T800 Premium Carbon Fiber | |
| Weight | 1250g ±5% | 1350g ±5% |
| Inner Width | 25mm | 25mm |
| Outer Width | 34mm | 35mm |
| Spoke Material | Carbon Fiber With PBO Fiber | |
| Spoke Count | 21F | 24R |
| Tire Compatibility | Clincher/Tubeless | |
| Wheelset Hub | Self-developed Hubs | |
| Freehub Compatibility | Shimano / SRAM XDR | |
| Wheelset Weight Limit | 265 Pounds (About 120KG) | |
Free worldwide shipping · Taxes & duties included
The most worry-free purchase
Free Worldwide Shipping
Wherever you are on the planet, enjoy free global shipping delivered right to your doorstep.
Taxes & duties included
The listed price is fully inclusive — covers all consumption taxes, customs clearance, duties, and shipping/logistics fees.
Estimated Delivery Time
Delivery time depends on your location — we ship from the closest warehouse for quicker delivery.

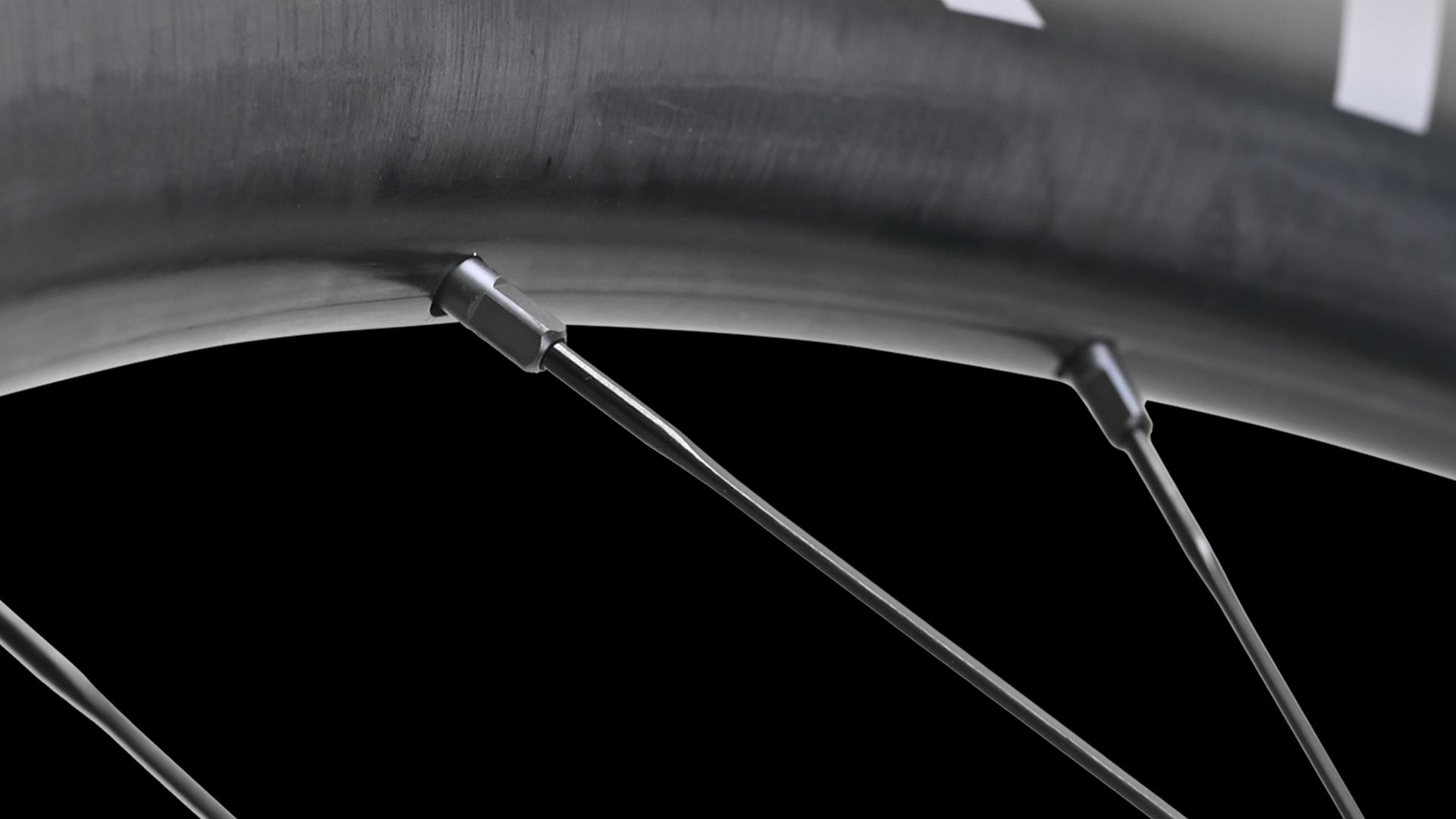

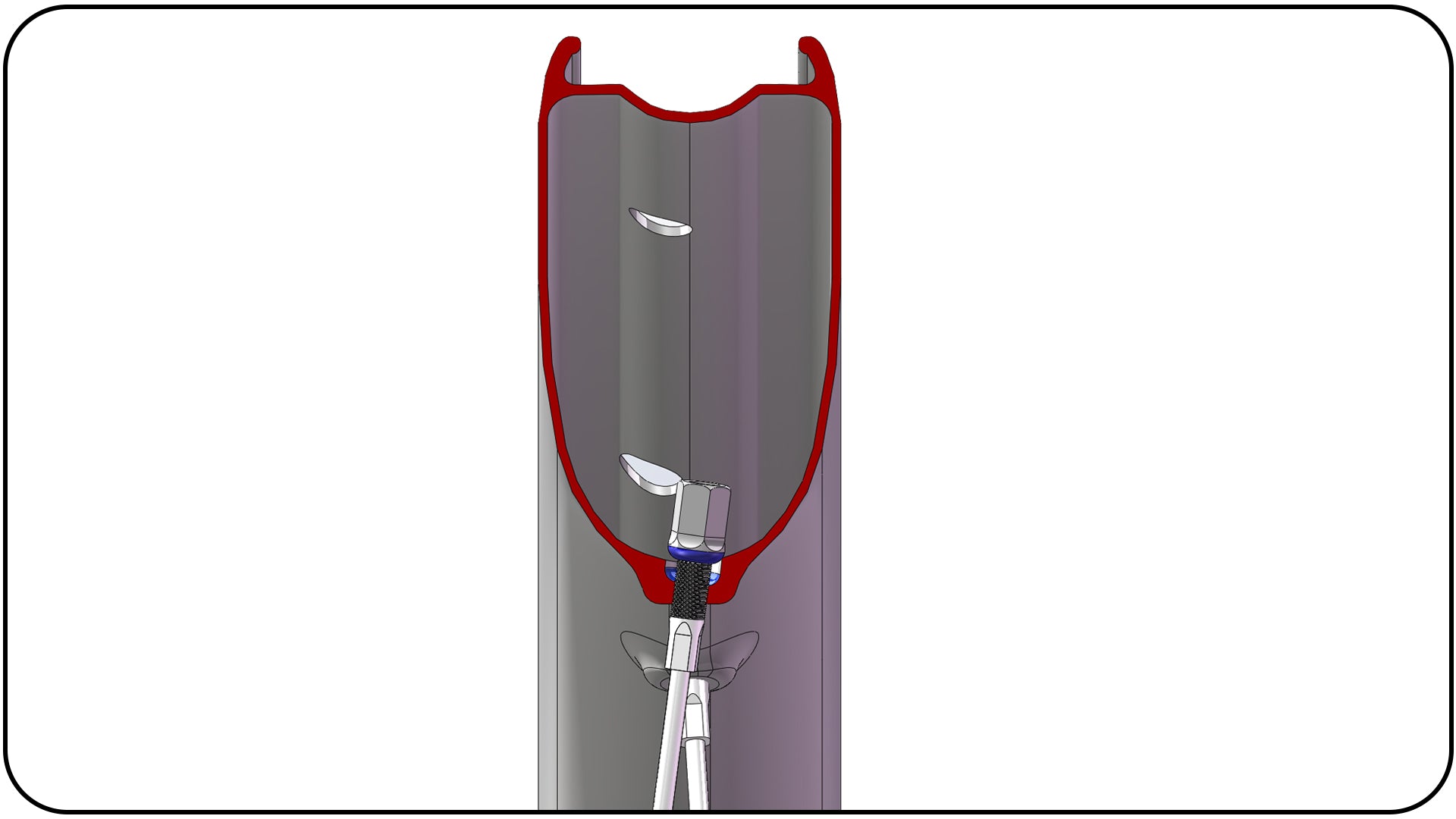

VectorFit™ Spoke Interface
PRO PLUS rims are molded with dedicated nipple-matched dies to form spoke holes conforming to nipple shapes and angles. After wheel lacing, spokes align at optimal angles to effectively reduce lateral extra stress.

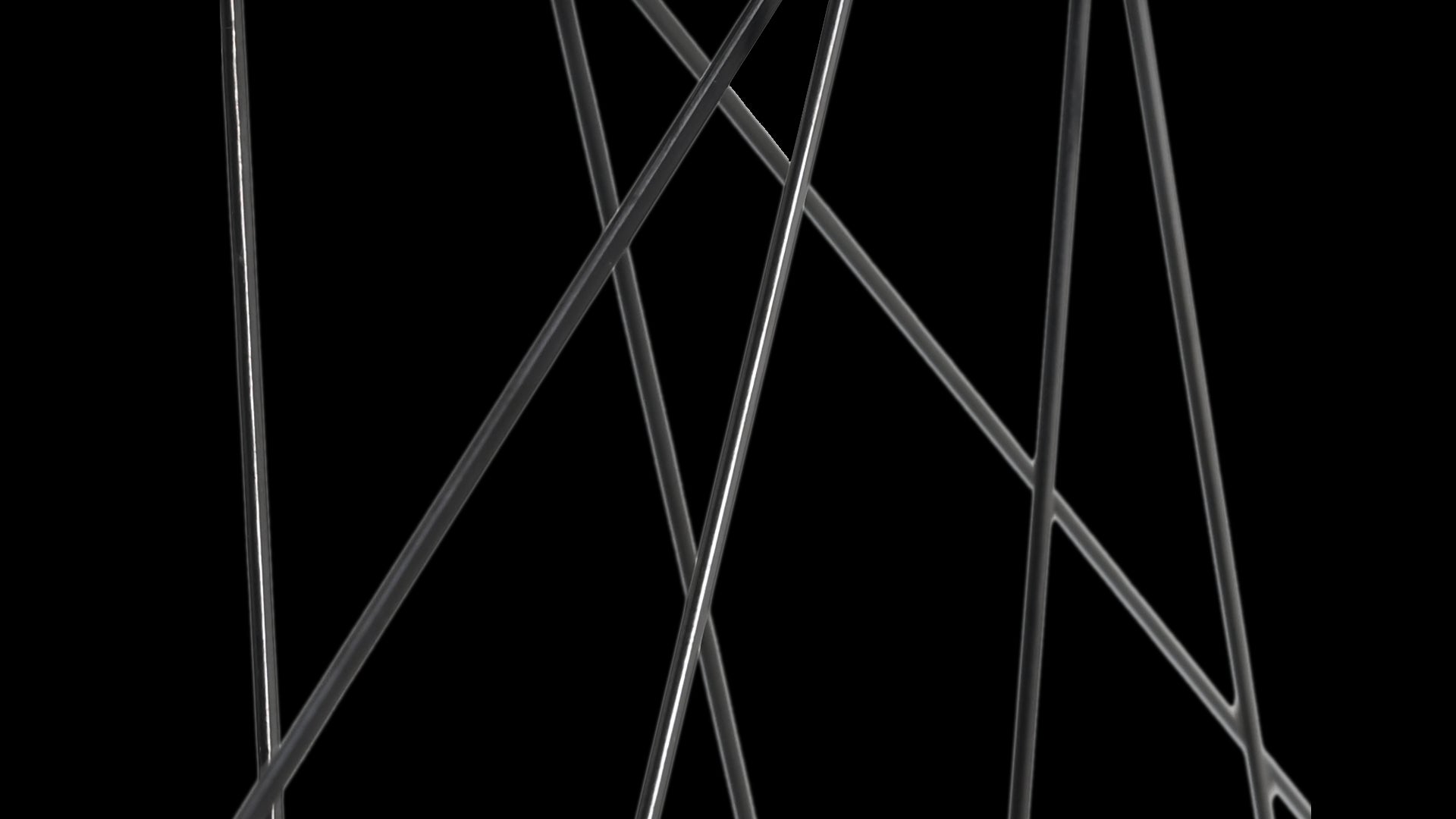

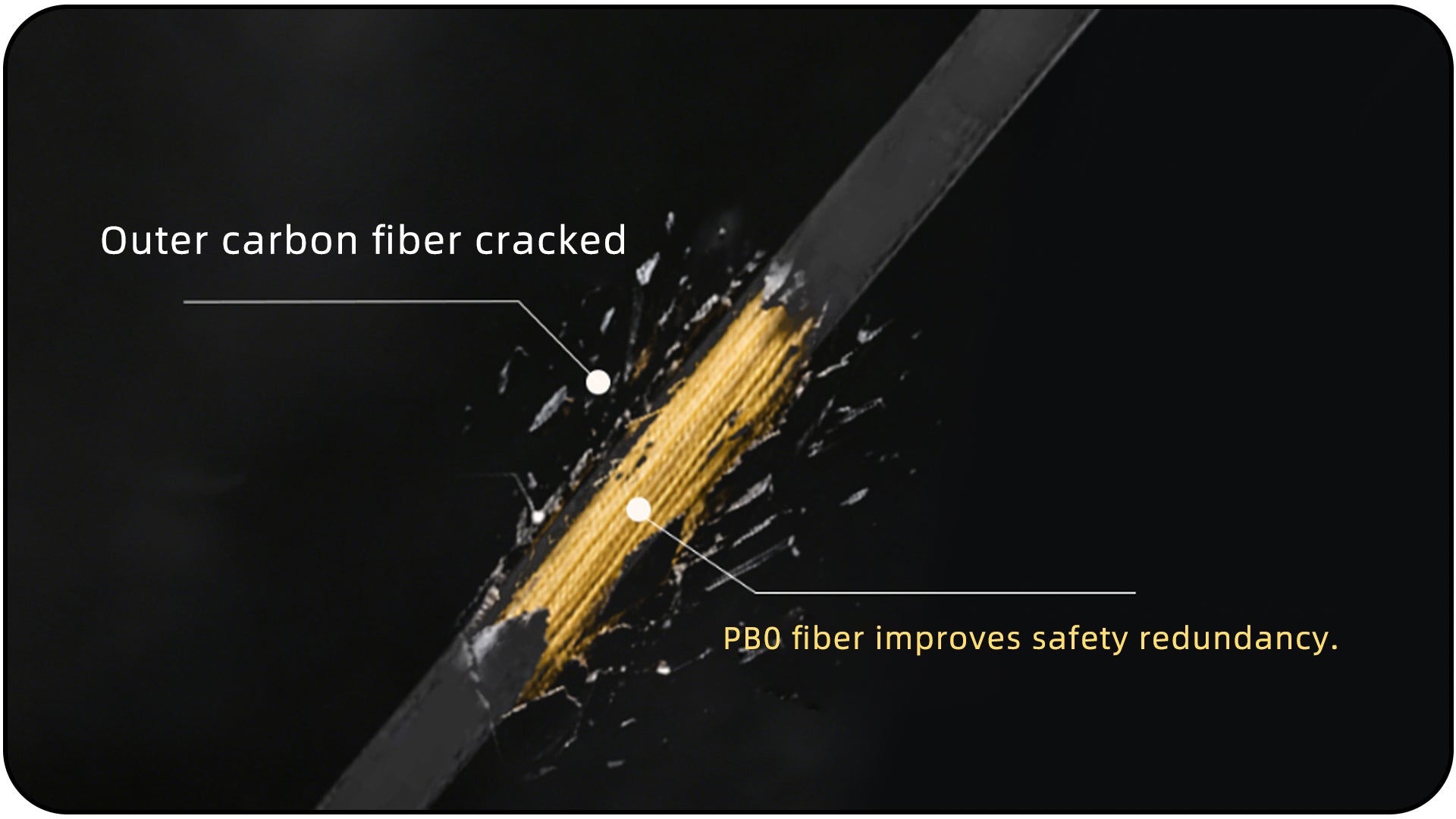

PBO Spokes UPVINE PATENTED
PBO spokes deliver over ten times the cut resistance of carbon fiber spokes. In cases of extreme impact or unexpected damage to wheelsets, PBO fiber greatly enhances the fracture resistance of spokes under extreme loading, safeguarding the overall structural integrity of the wheelset and rider safety.

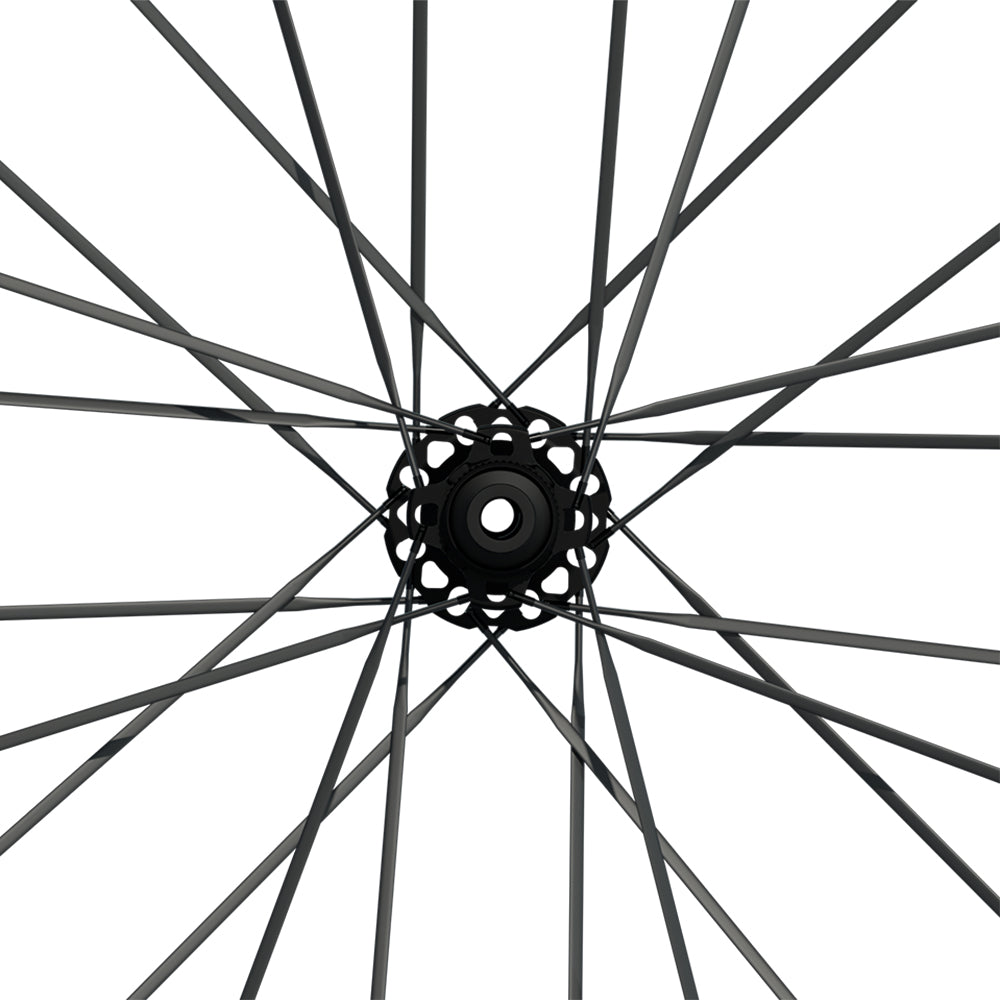

DualBalance™ Geometry System
PRO PLUS features the DualBalance™ Geometry System, which optimizes spoke angles via 2:1 lacing and asymmetric flanges to balance bilateral spoke tension and axial support.

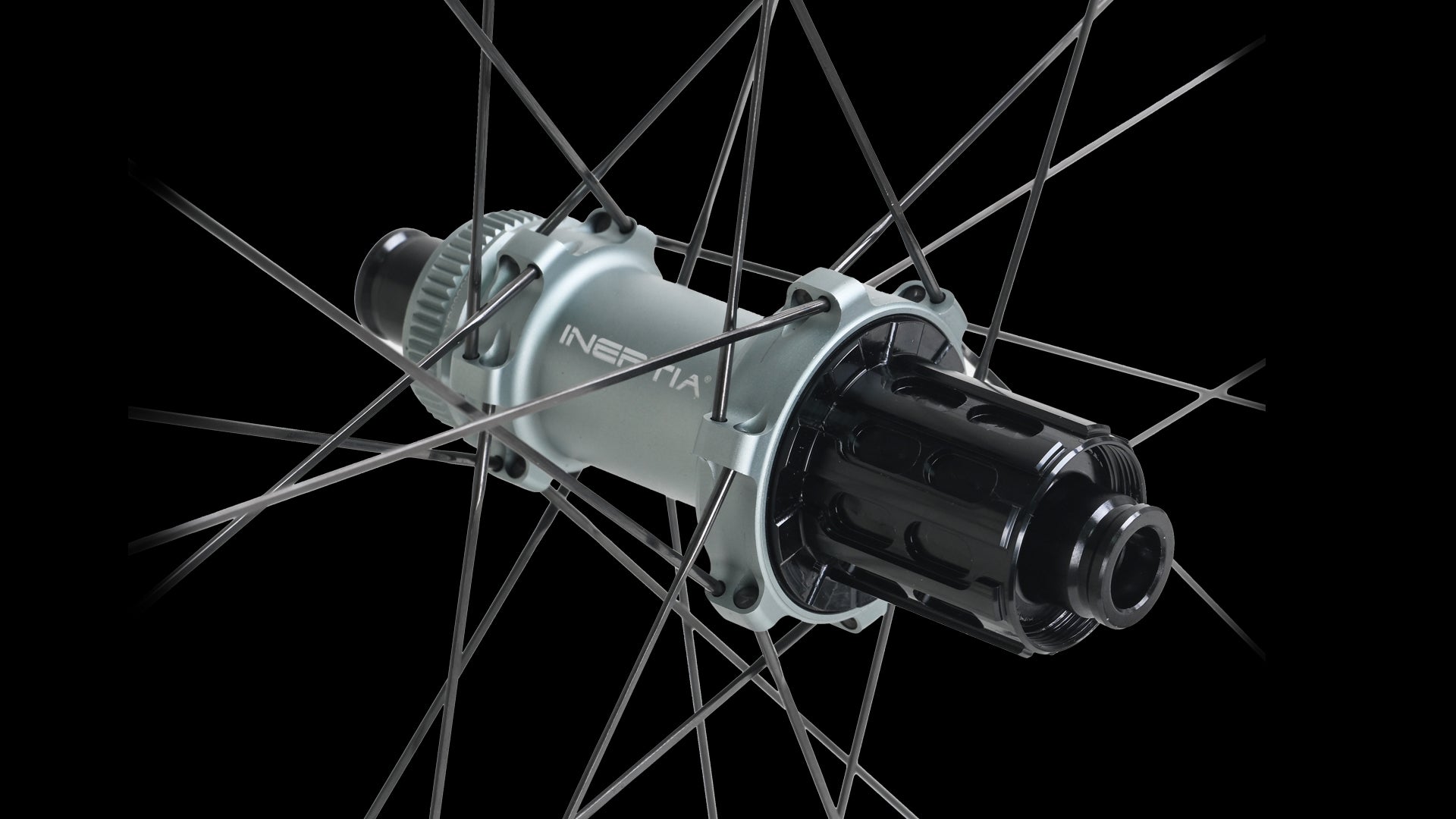

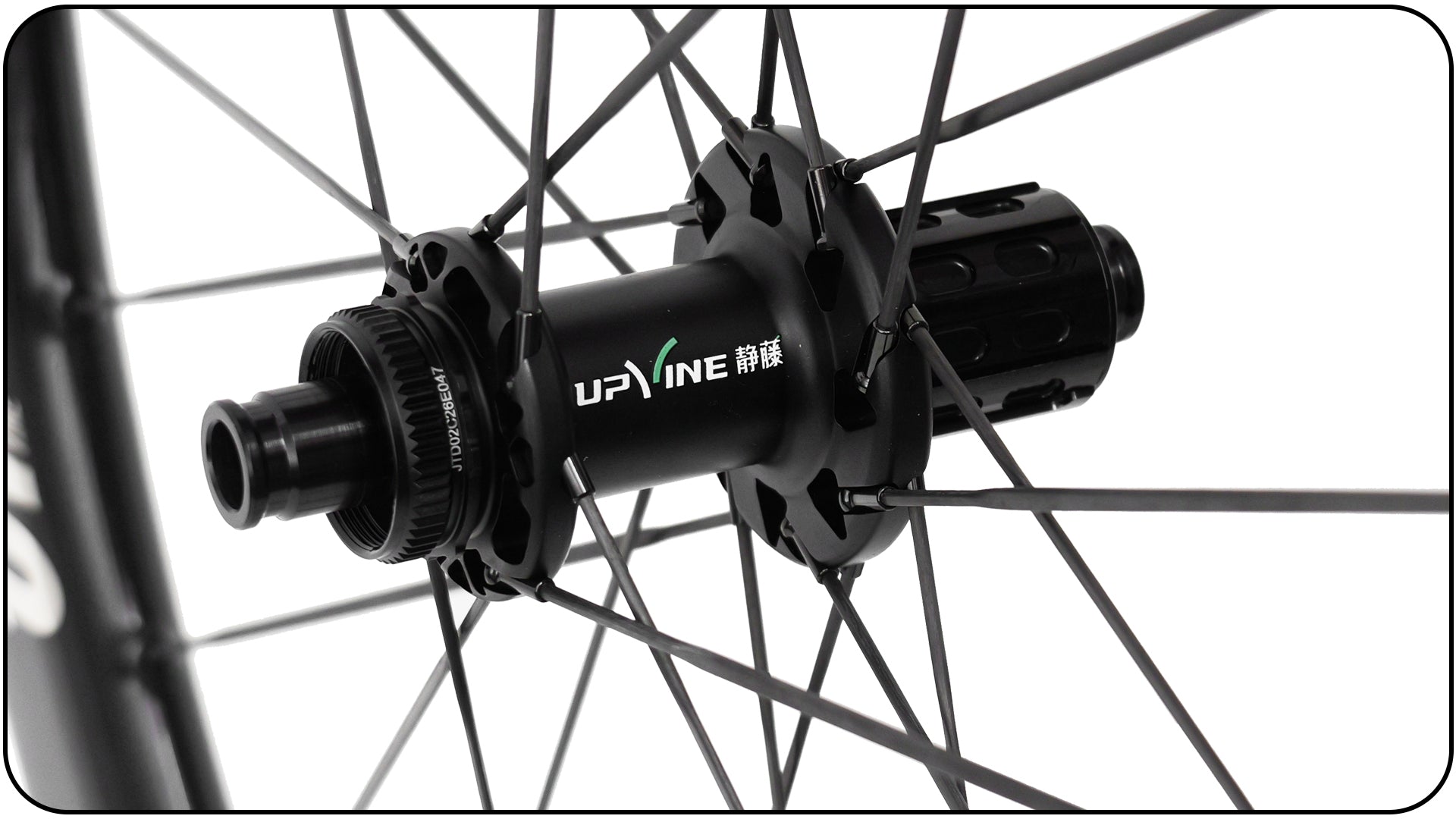

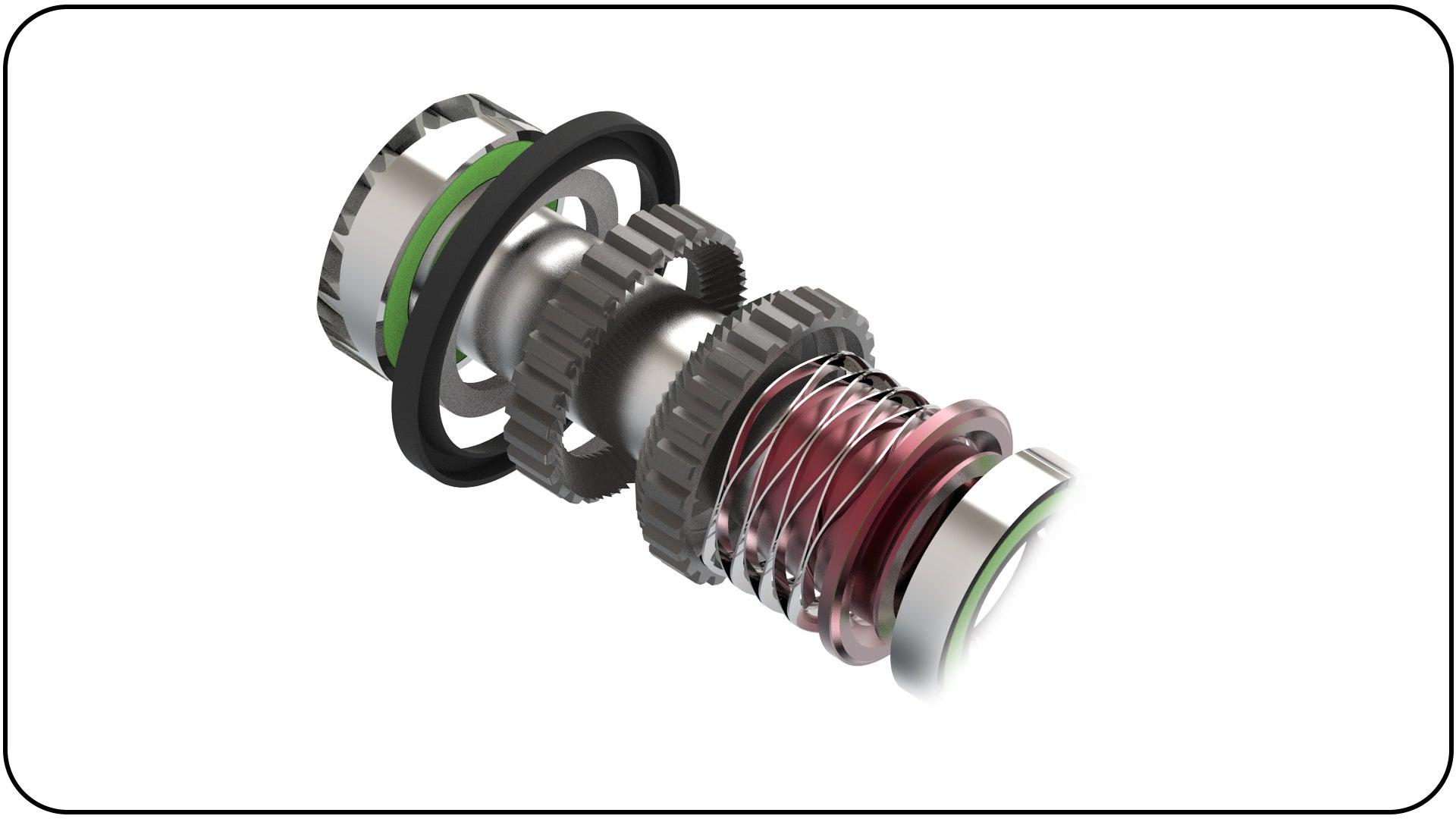

ConicalSync™ Tangent Engagement
The ConicalSync™ tangent engagement ratchet system expands tooth contact area via conical structure. Its 6° engagement geometry boosts actual contact area by 10% for faster power transfer and higher torque capacity. Equipped with multi-point wave springs for uniform rebound, it delivers superior meshing stability versus conventional radial-tooth designs.

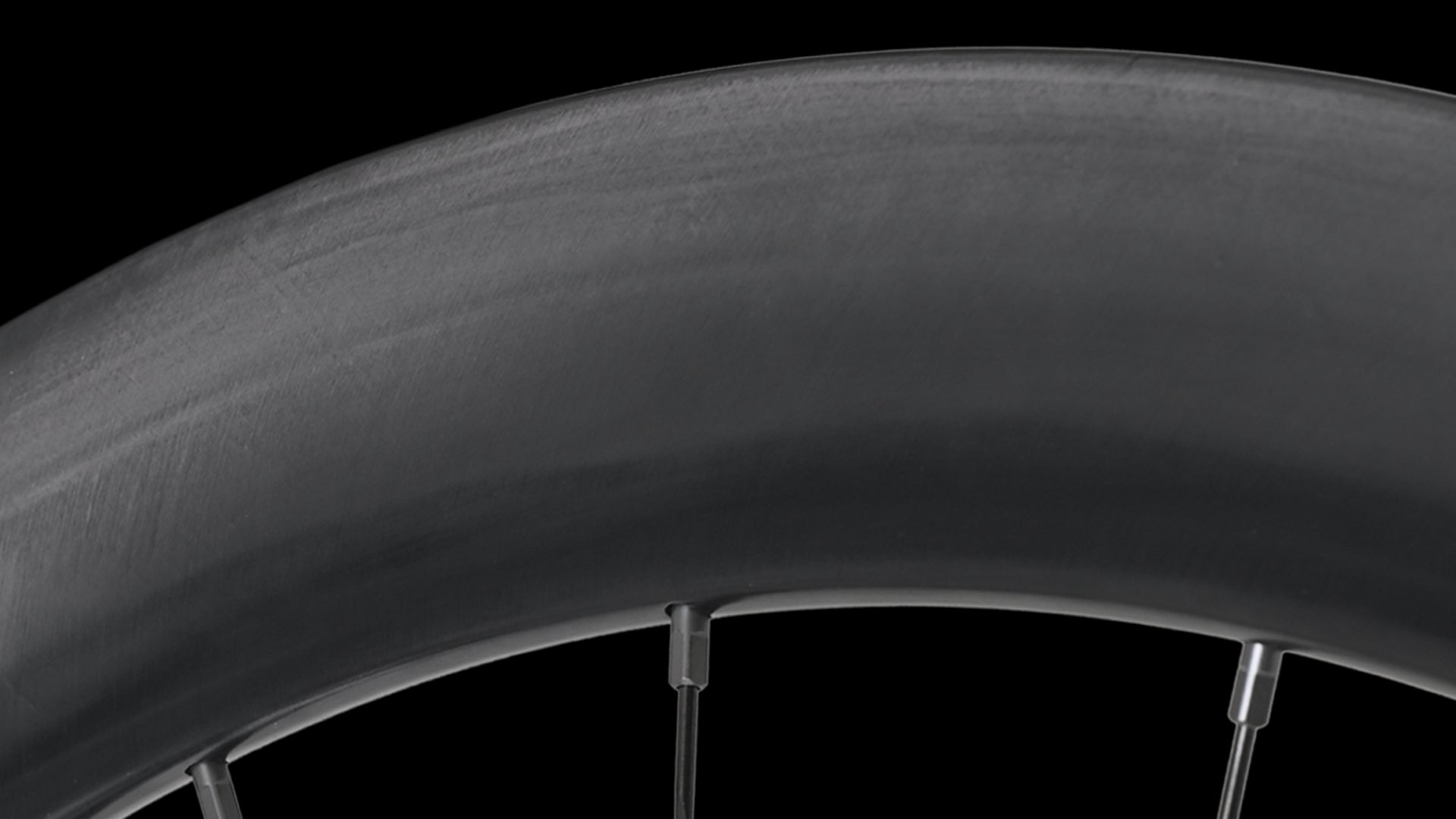

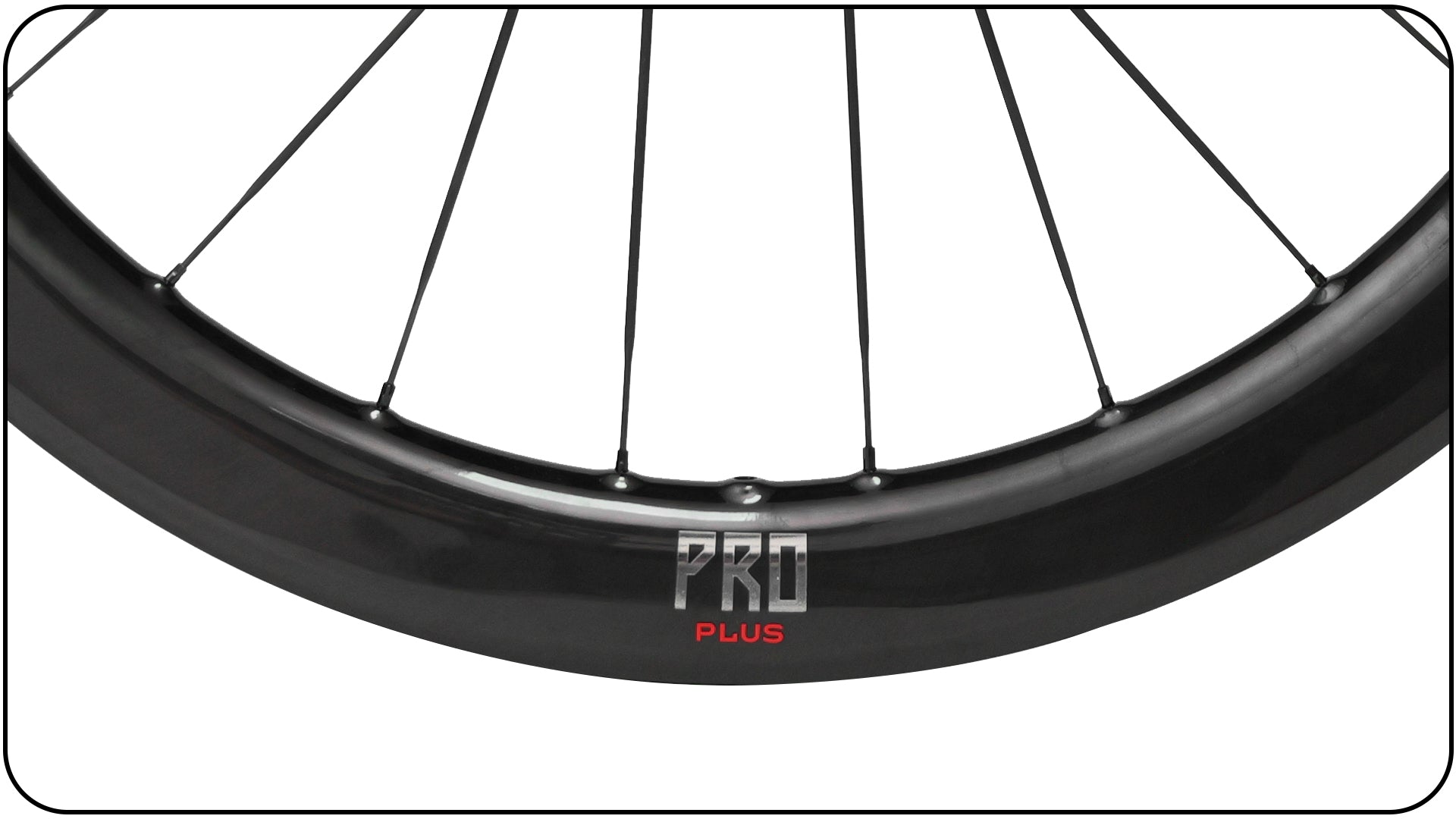

Integrally Formed Spoke Holes
This design evenly distributes spoke tension, minimizes localized stress damage and fatigue buildup for improved structural integrity and long-term operational safety.
