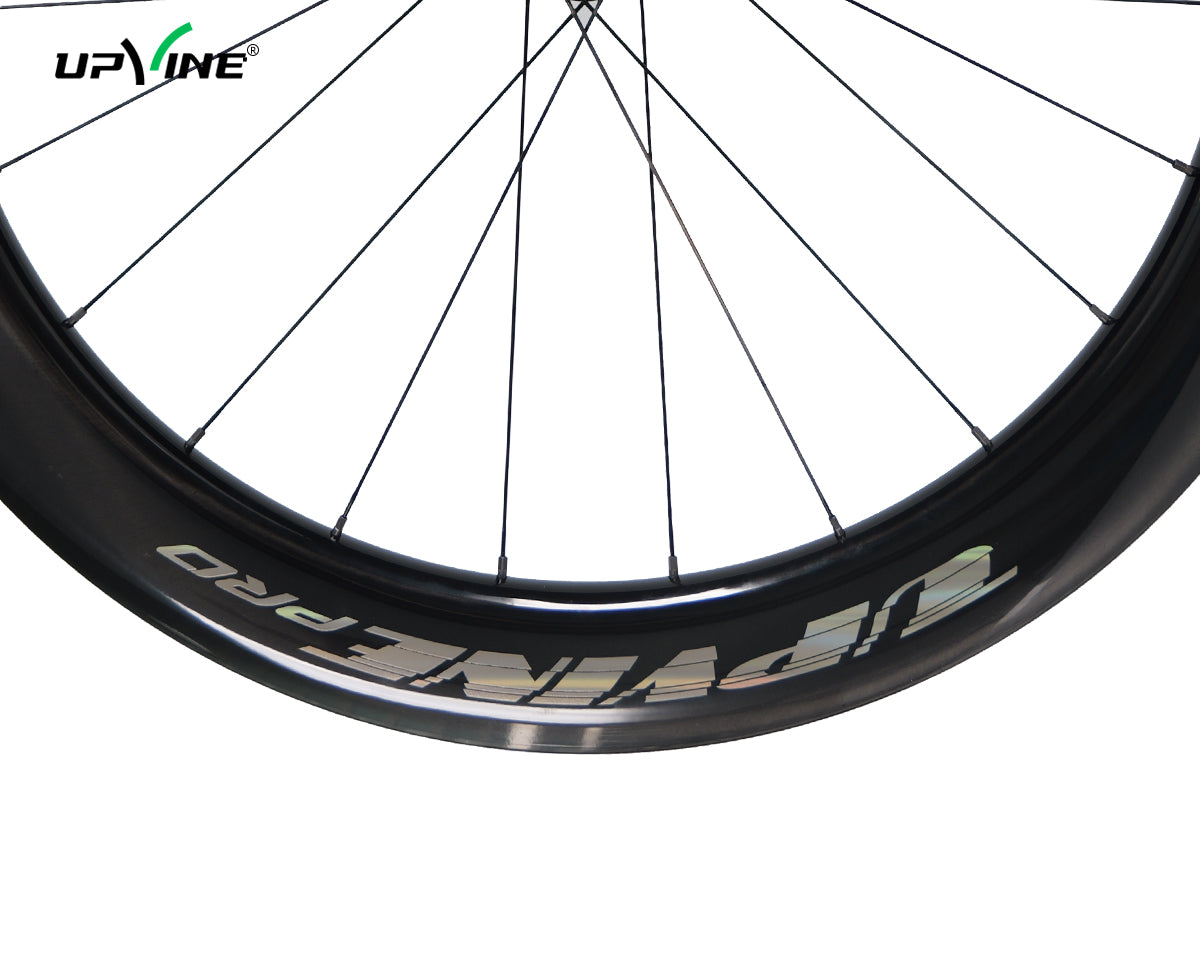

UPVINE
Pro Disc Wheelset
- Regular price
- $1,599.00 USD
- Sale price
- $1,599.00 USD
- Regular price
-
$1,999.00 USD
Shipping calculated at checkout.
-
Balanced Spoke Tension
Offset rim and hub design yield near-equal left/right spoke tension for uniform load distribution. -
High Lateral and Drive Stiffness
Optimized structure delivers strong lateral support and direct power transfer under load. -
2:1 Spoke Lacing
2:1 spoke pattern with high-tension balance ensures lateral and radial runout ≤ 0.15 mm. -
Proven Hub Stability
Hub validated in market and race conditions for reliability and reduced drivetrain losses. -
Reinforced Spoke–Hub Interface
A 2.2 mm reinforcement is applied at the spoke–hub interface to enhance joint strength and durability. -
Multiple Rim Heights
Offered in three rim heights to match rider preference for aerodynamics vs. weight.
The UPVINE® brand is rapidly expanding across countries and regions worldwide.
CONTACT US
| Model | UPVINE® — Pro | |
|---|---|---|

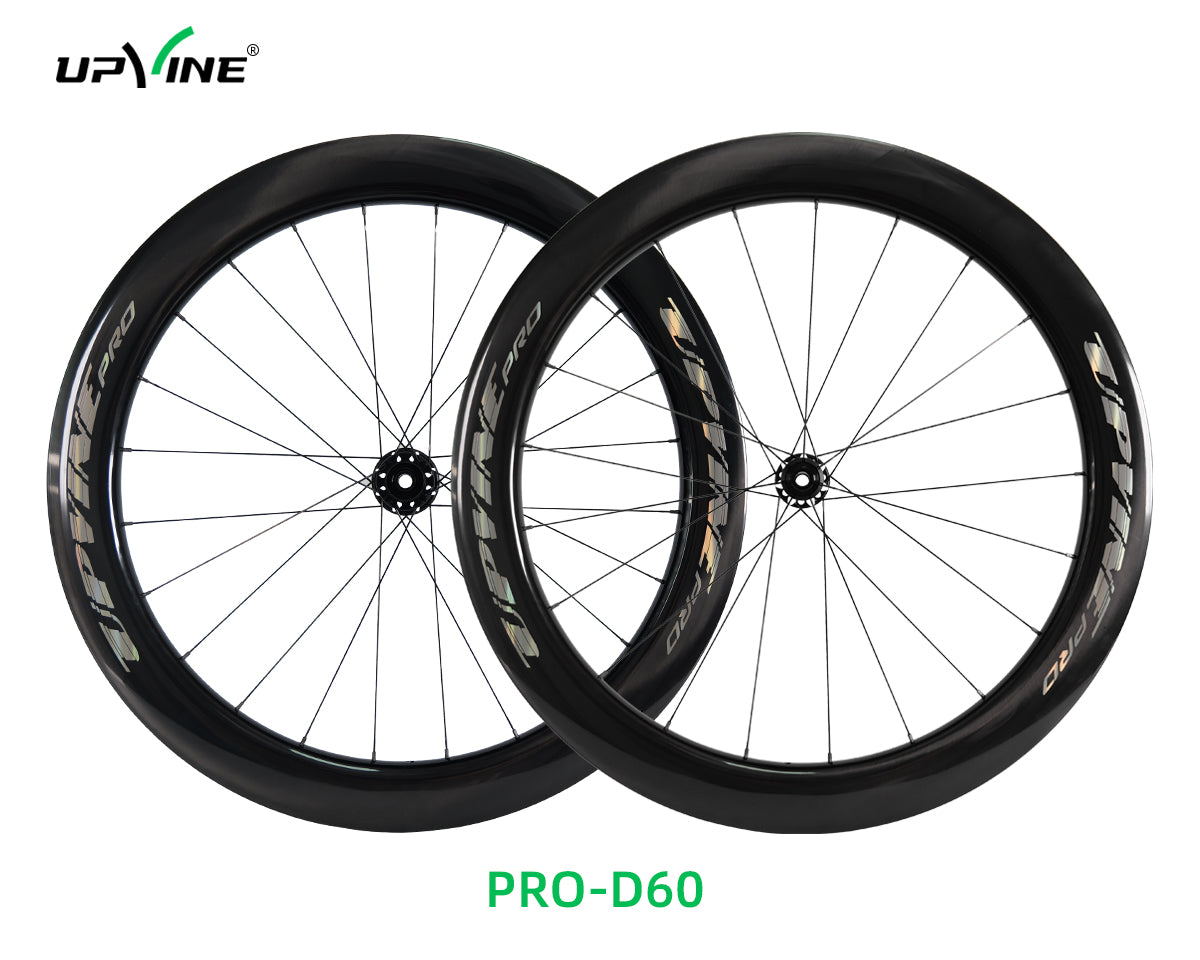

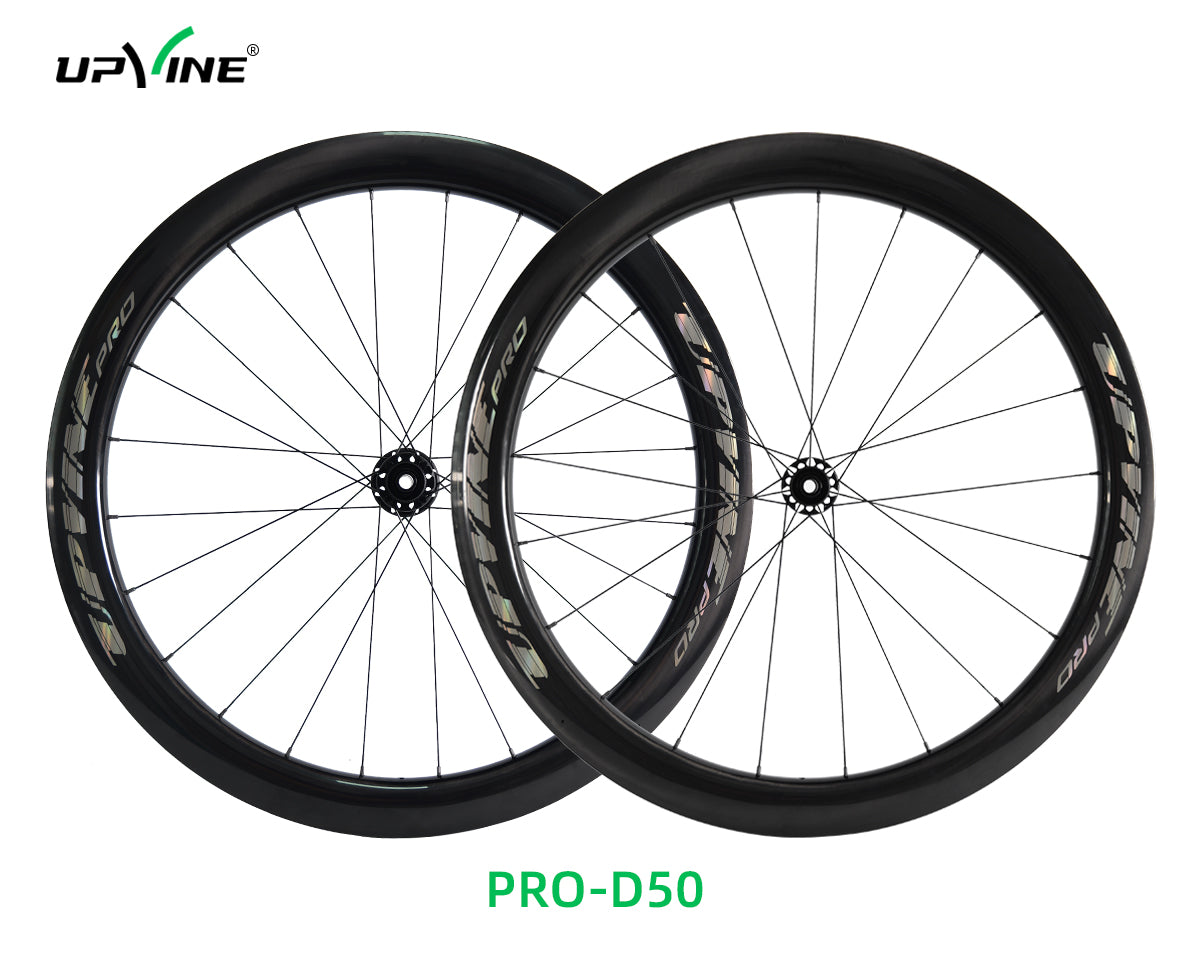

| Rim Depth | 50mm | 60mm |
| Rim Material | Toray T700 & T800 Premium Carbon Fiber | |
| Weight | 1360g ±5% | 1425g ±5% |
| Inner Width | 23mm | 23mm |
| Outer Width | 35.1mm | 35.1mm |
| Spoke Material | Steel Spokes | |
| Spoke Count | 21F | 24R |
| Tire Compatibility | Clincher/Tubeless | |
| Wheelset Hub | Self-developed Hubs | |
| Freehub Compatibility | Shimano / SRAM XDR | |
| Wheelset Weight Limit | 265 Pounds (About 120KG) | |
Free worldwide shipping · Taxes & duties included
The most worry-free purchase
Free Worldwide Shipping
Wherever you are on the planet, enjoy free global shipping delivered right to your doorstep.
Taxes & duties included
The listed price is fully inclusive — covers all consumption taxes, customs clearance, duties, and shipping/logistics fees.
Estimated Delivery Time
Delivery time depends on your location — we ship from the closest warehouse for quicker delivery.

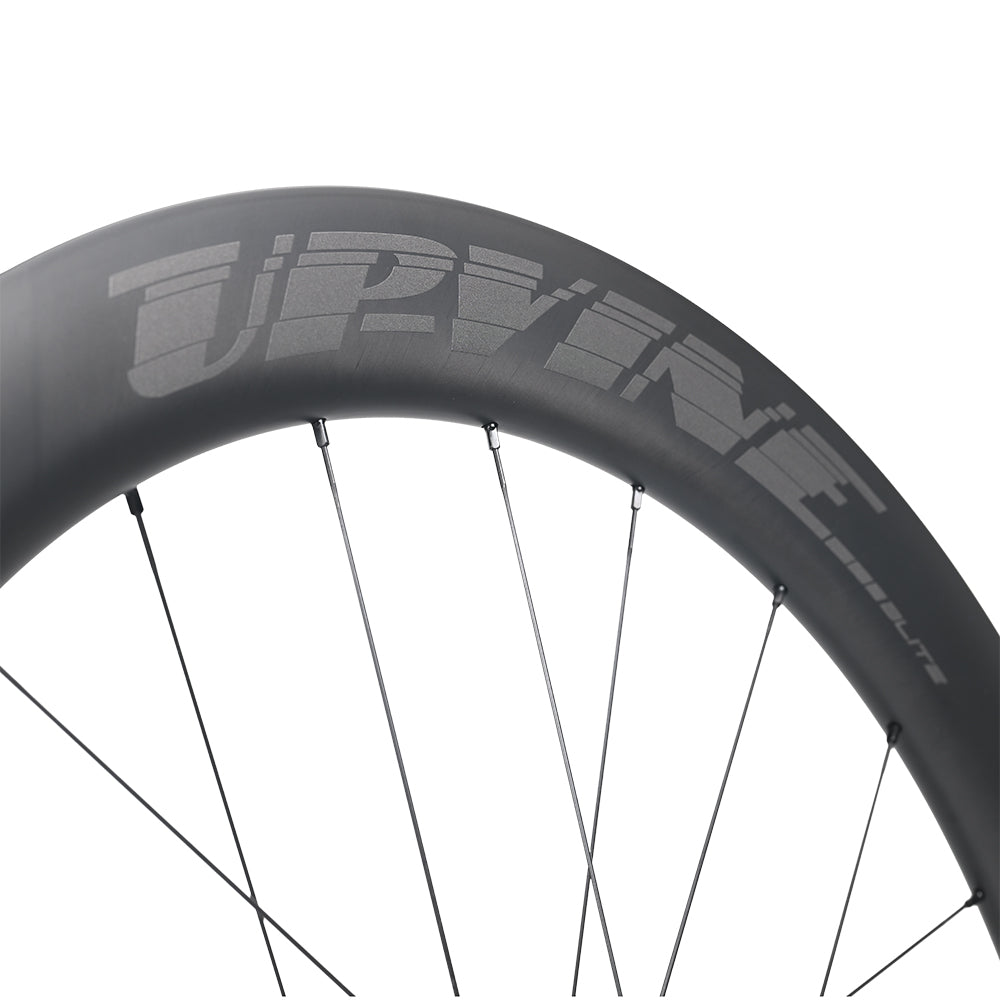

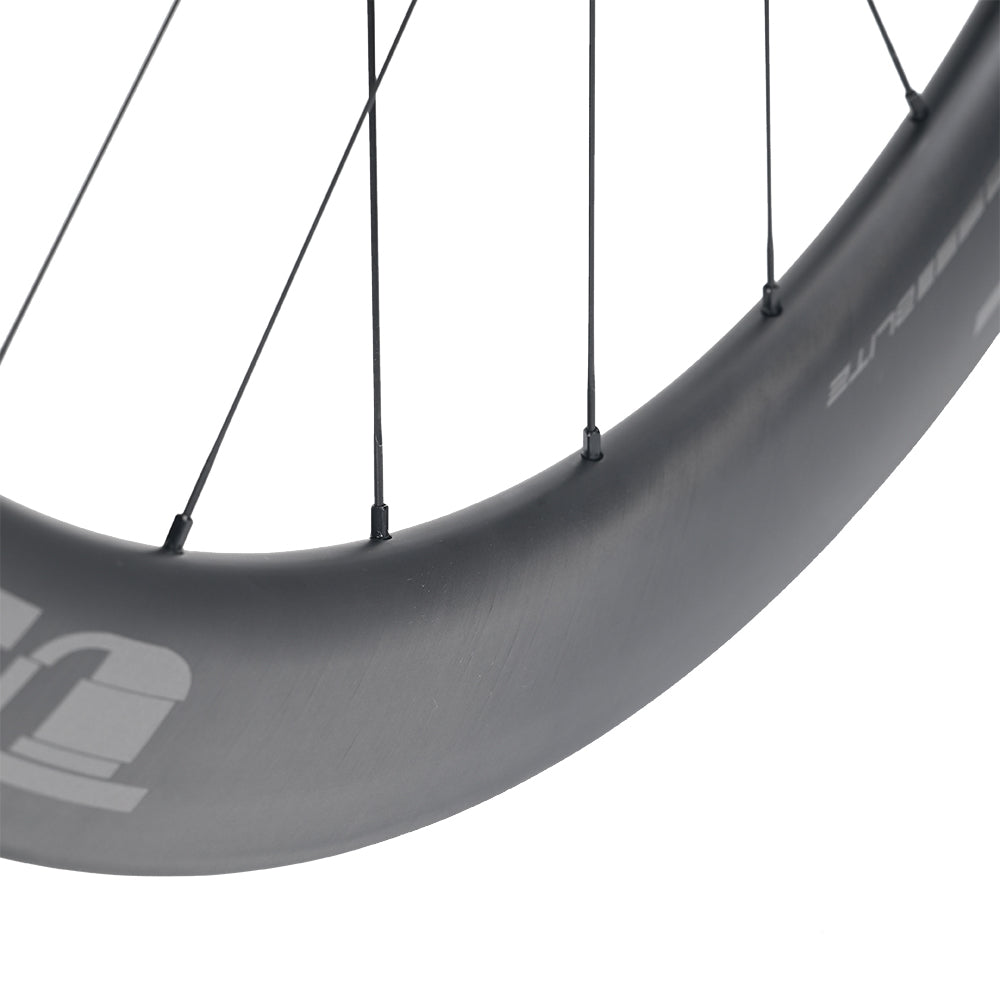

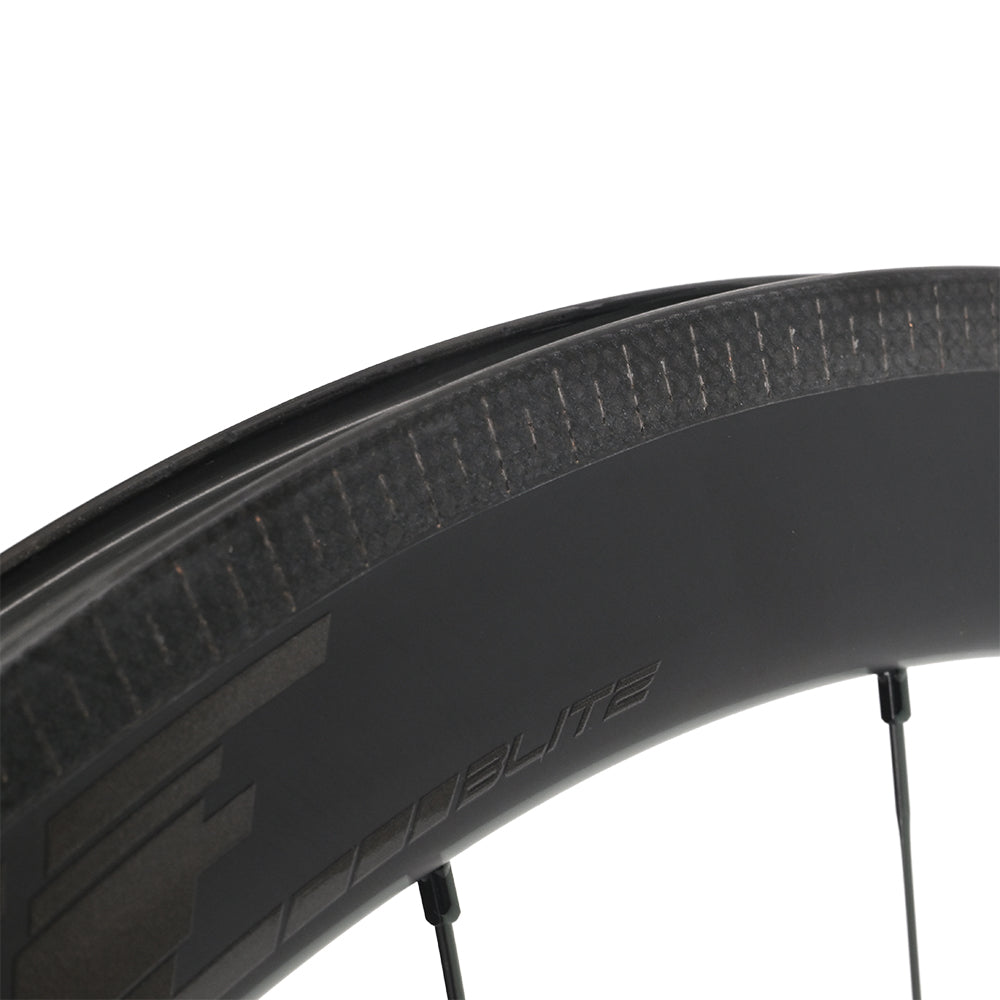

Hybrid Toray T700 + T800 Carbon Fiber Construction
We utilize a strategic blend of Toray T700 and T800 carbon fiber to achieve an industry-leading strength-to-weight ratio and superior fatigue resistance. By optimizing the carbon layup schedule, FarSports (JingTeng) ensures uniform stress distribution and precise fiber orientation. This significantly enhances impact resistance and long-term durability while maintaining a featherlight profile.

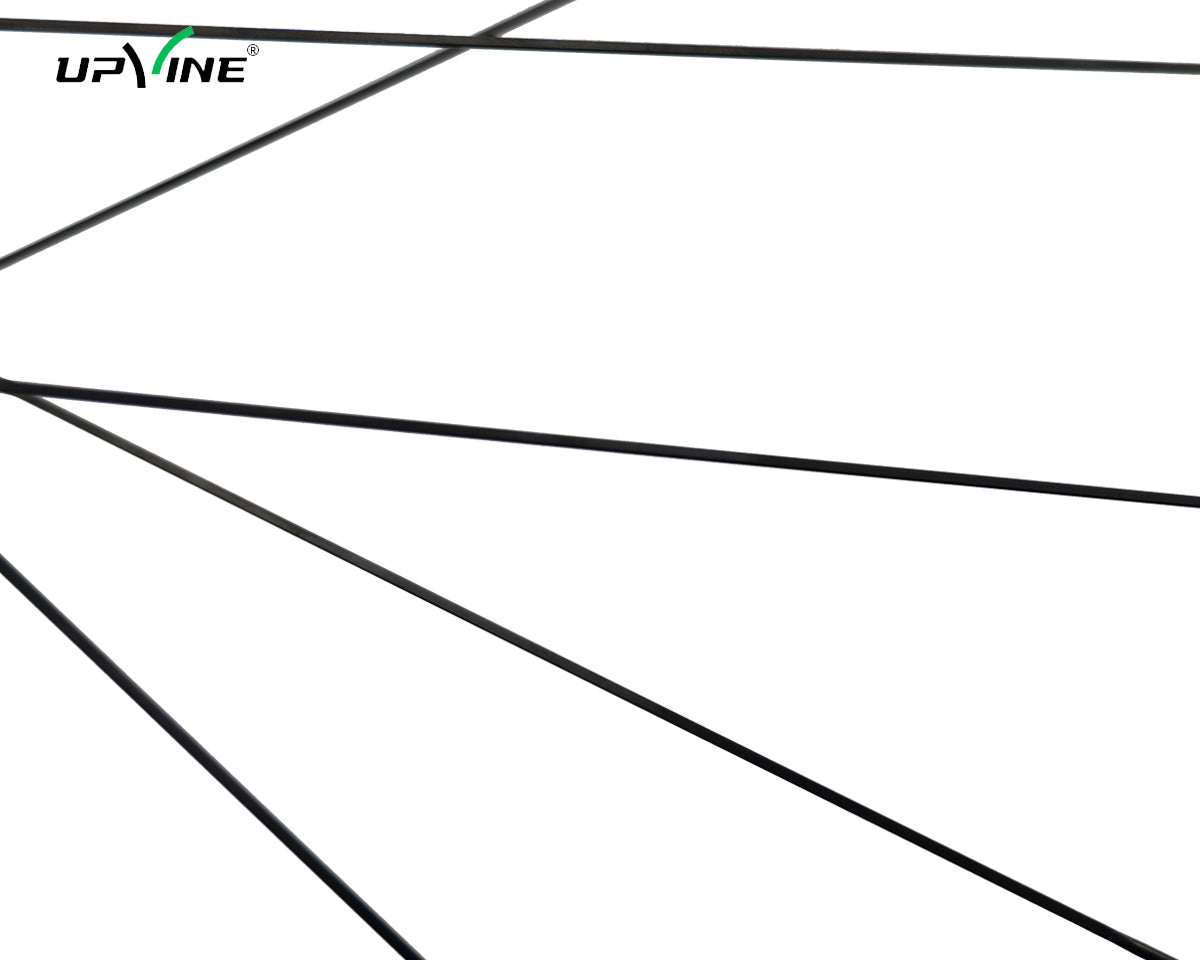

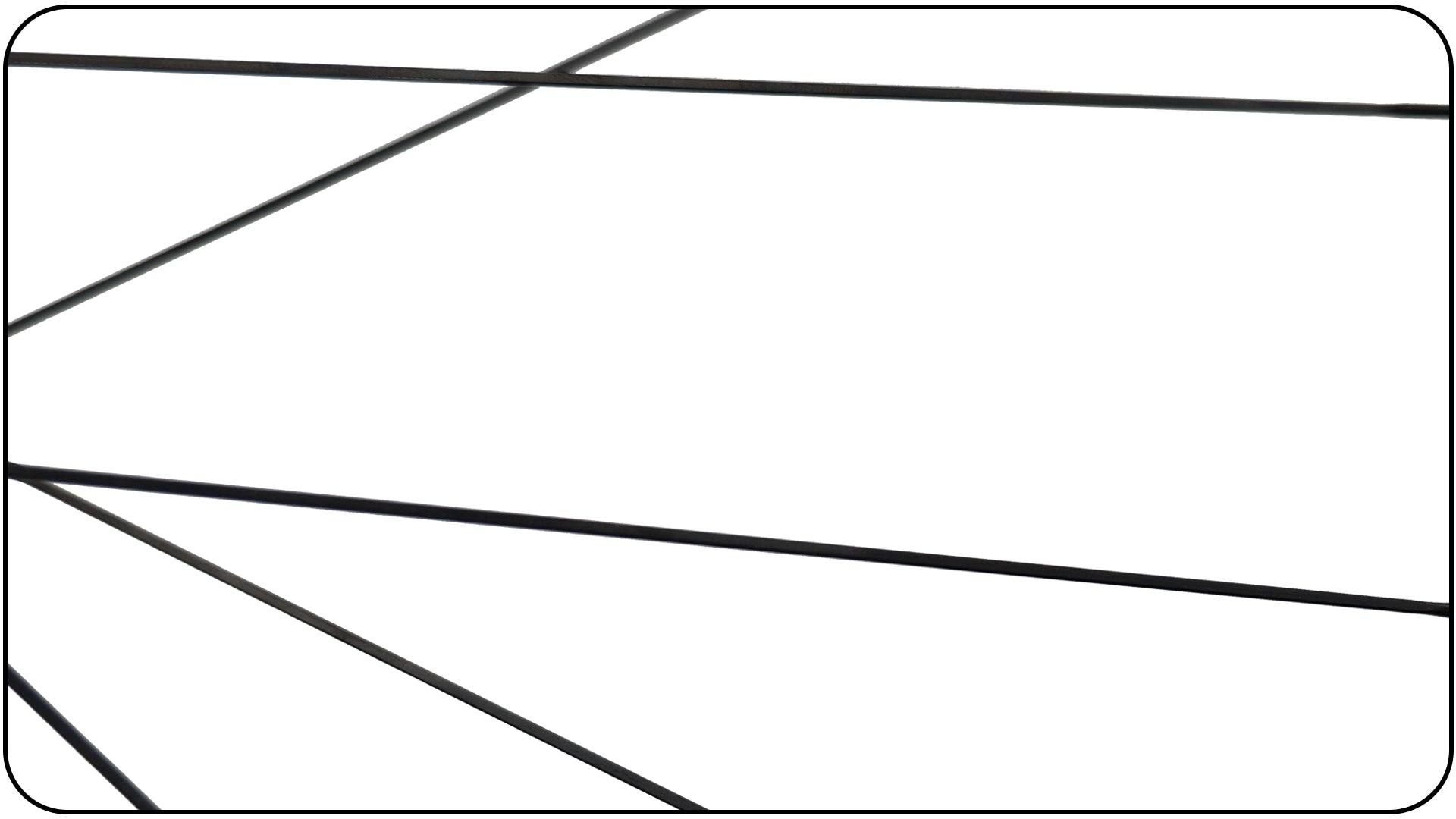

Custom Ultralight Stainless Steel Spokes
Our custom-engineered stainless steel spokes are a masterclass in weight reduction, weighing a mere 3.7g per piece. Despite their minimal mass, they boast a breaking strength of 3,500N—outperforming mainstream premium spokes by 24%. These spokes deliver a perfect balance of lateral stiffness, weight savings, and exceptional aero-stability in crosswinds.

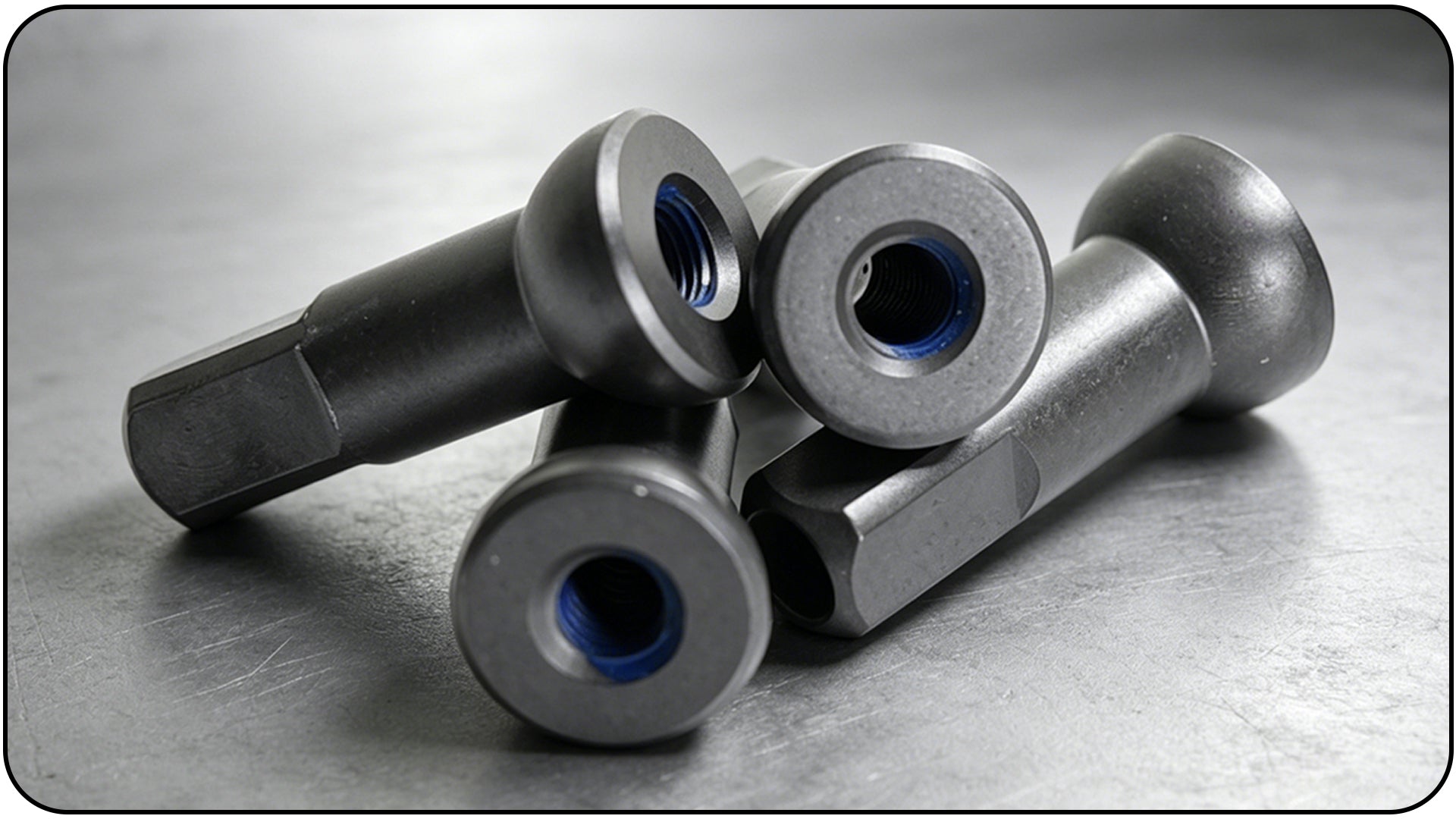

High-Grade Titanium Nipples
Titanium’s natural corrosion resistance eliminates the risk of structural failure caused by sweat, road salt, or environmental pollutants. These Ti-nipples ensure the spoke-to-rim interface remains secure and service-free, providing peace of mind and long-term reliability even in the most demanding coastal or humid riding conditions.

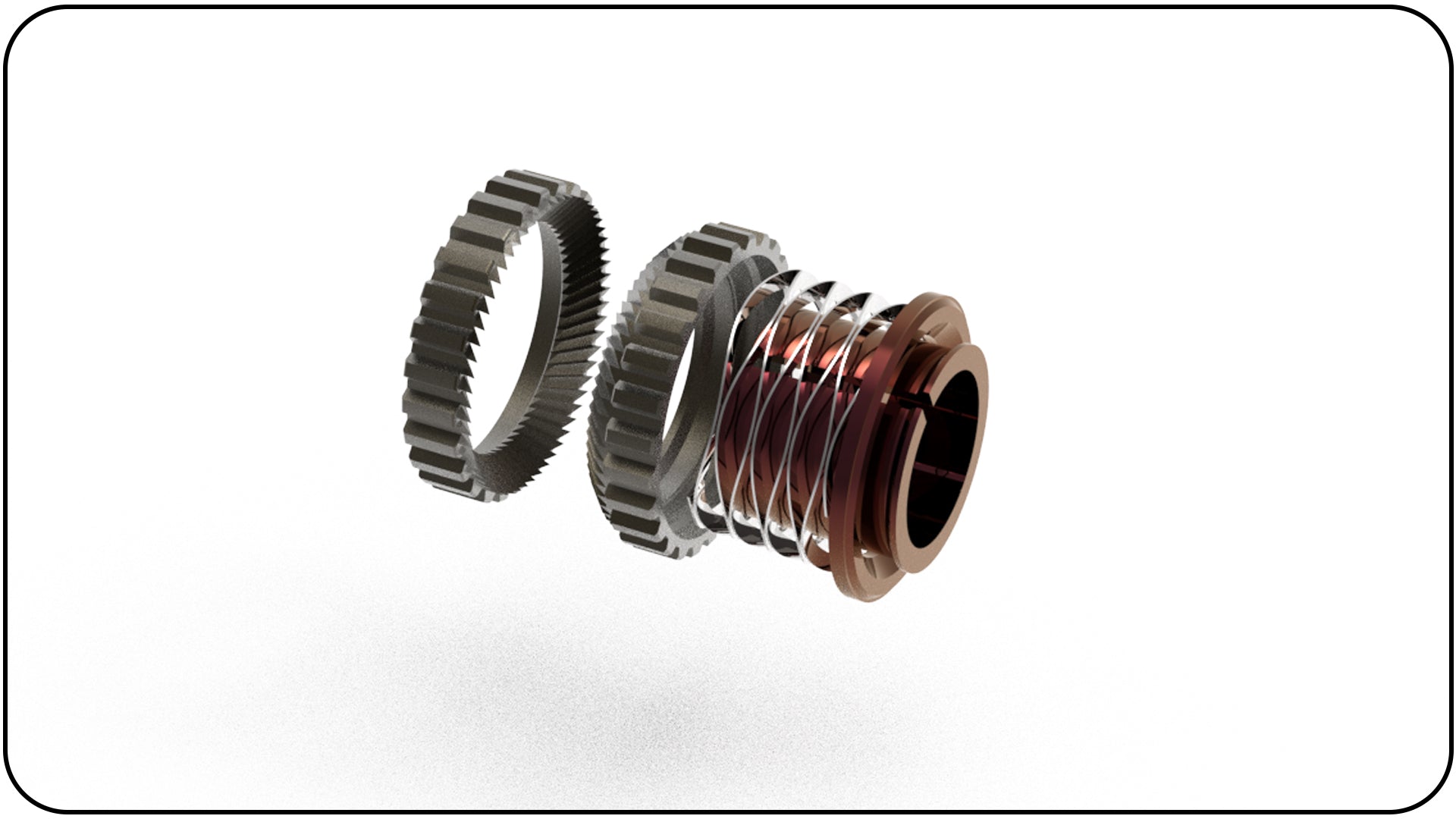

60T Conical Tangential Ratchet System
The hub internals feature a sophisticated 60T conical tangential ratchet, designed for full-face engagement. Unlike traditional radial teeth, the tangential geometry maximizes the contact surface area. With a lightning-fast 6° engagement angle, the effective contact area is increased by 10%, resulting in instantaneous power transfer and superior torque capacity.

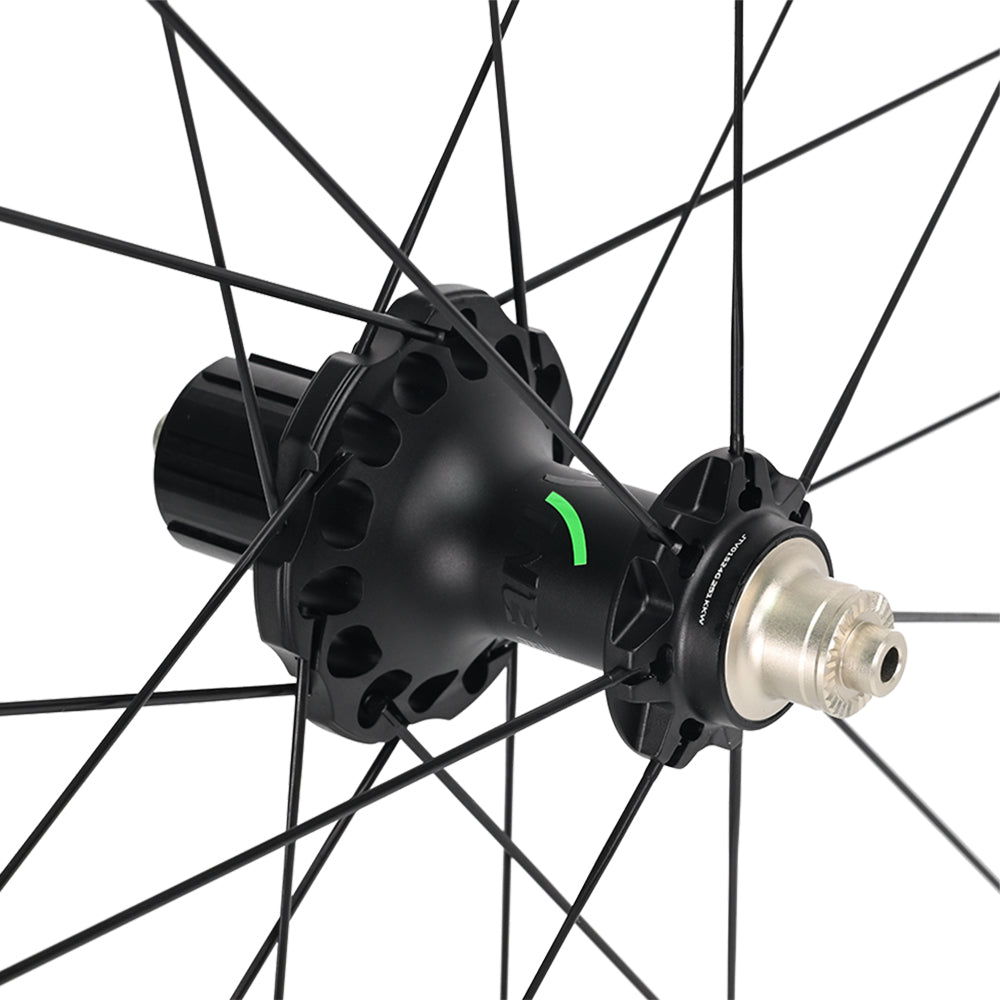

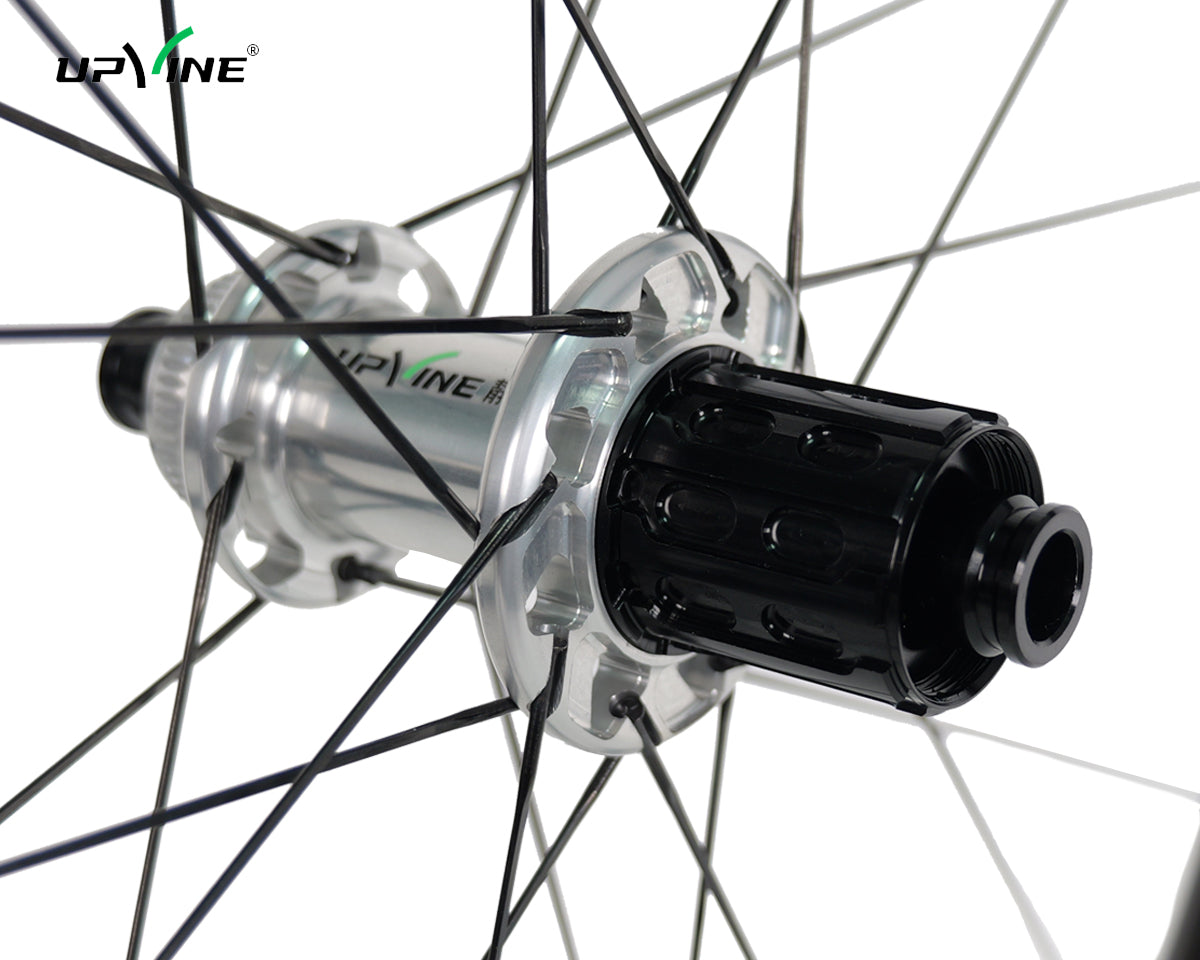

Aerospace-Grade C919 Aluminum Hubsets
Constructed from high-strength aluminum alloys used in C919 aerospace applications, our hubs offer an elite strength-to-weight ratio and exceptional fatigue life.
PRO Hub Shell: Spoke hole pull-through strength reaches 4,900N, far exceeding industry standards for maximum wheel stability.
Freehub Body: Rated for 180–200Nm of torque and validated through 60,000 stress cycles without failure, ensuring rock-solid performance under high-wattage sprints and climbs.
