When most cyclists choose new tires, they focus on tire width—28mm, 30mm, or 32mm. However, one critical measurement often gets overlooked: internal rim width.
In recent years, road bike wheelsets have evolved dramatically. Just a few years ago, 17mm and 19mm internal widths were the industry standard. Today, modern carbon wheelsets range from 21mm to 25mm internal width, while gravel wheels have already pushed beyond 30mm.
As wider tires become increasingly popular, cyclists are asking:

• Is a 21mm internal rim still enough?
• Should I choose a 23mm or 25mm internal width wheelset?
• How does rim width affect tire performance?
• This guide explains the relationship between rim width and tire size, includes a compatibility chart, and helps you choose the right setup for your riding style.

What Is Internal Rim Width?

Internal rim width is the distance between the two bead seats inside the rim.
It directly affects:

• Tire shape
• Actual tire width
• Air volume
• Cornering stability
• Rolling resistance
• Aerodynamics

A narrow rim forces the tire into a rounded “lightbulb” shape.
A wider rim supports the tire sidewall, creating a more stable and efficient profile.
This is why modern wheel design is no longer just about weight or aero—it is about system optimization between rim and tire.

Why Internal Rim Width Matters More Than Most Cyclists Think?

The tire is the bike's only contact point with the road.
When you increase internal rim width, you change:

• Tire shape
• Tire volume
• Cornering support
• Ride comfort
• Aerodynamic efficiency
• Rolling resistance

A tire mounted on a narrow rim tends to form a "lightbulb" shape. On a wider rim, the tire sidewalls become more supported and stable.
This is why internal rim width has become one of the most important wheel design factors in modern road cycling.
Here's something most riders never find out until they go down a deep internet rabbit hole at 2am: that "25c" stamped on your tire sidewall is kind of a lie.
Not a malicious one. But a misleading one.
That number was measured on a specific rim width — usually a narrow 17c internal — under controlled lab conditions. Mount that same tire on a wider rim, and it physically expands. Mount it on a narrower rim, and it squishes inward. The tire doesn't know what size it's "supposed" to be. It just fills the space it's given.
The result? A 25c tire on a 21c internal rim runs closer to 27-28mm in actual width. On a 25c internal rim — like what you'd find on Zipp or ENVE's latest hoops — that same tire blooms out to nearly 30mm.
You bought a 25c. You're riding a 28c. And your frame clearance, your tire pressure, and your handling are all affected by a number you never checked.

Why This Matters More Right Now Than Ever Before?

Five years ago, this was a niche conversation for weight-weenie forums. Today, it's the single most important spec to understand when buying a road wheelset — because the entire market has shifted underneath us.
In the early 2010s, road cycling was locked into a 23c orthodoxy. Narrow was fast. Aero was everything. Internal rim widths of 13-15c were standard, because they were built around 23c tires and nothing else.
Then the data started coming in. Jan Heine's tire research. Silca's rolling resistance studies. Tour de France teams quietly switching to 25c mid-race season. The conclusion was uncomfortable for everyone who'd been preaching narrow: wider tires, run at lower pressures, are faster.
Not just more comfortable. Actually, measurably, faster.
The mechanism is counterintuitive but now well-established: a wider tire deforms less as it rolls, creating a longer, flatter contact patch rather than a deep, energy-absorbing one. Less deformation = less heat = less wasted energy. The "squish loss" that everyone assumed was the enemy turned out to be much smaller than the energy lost to constant micro-impacts on a rock-hard narrow tire.So the market responded. Internal rim widths climbed: 17c became the new standard, then 19c, then 21c. Now in 2025, 21c internal is the mainstream entry point for any serious road wheelset. The performance end of the market — Zipp 353 NSW, ENVE SES, Lightweight Meilenstein — is pushing 25-28c internal. Gravel-influenced road wheelsets are touching 30c.
The tire side followed: 28c is the new 25c for most amateur riders. 30c is creeping into road-plus territory. Even WorldTour riders who can't run anything wider than their frame allows are often on 28c now.
The old "narrow rim + narrow tire = fast" equation has been retired. And if your wheelset was designed around 2018-era assumptions, you might be fighting against physics without realising it.

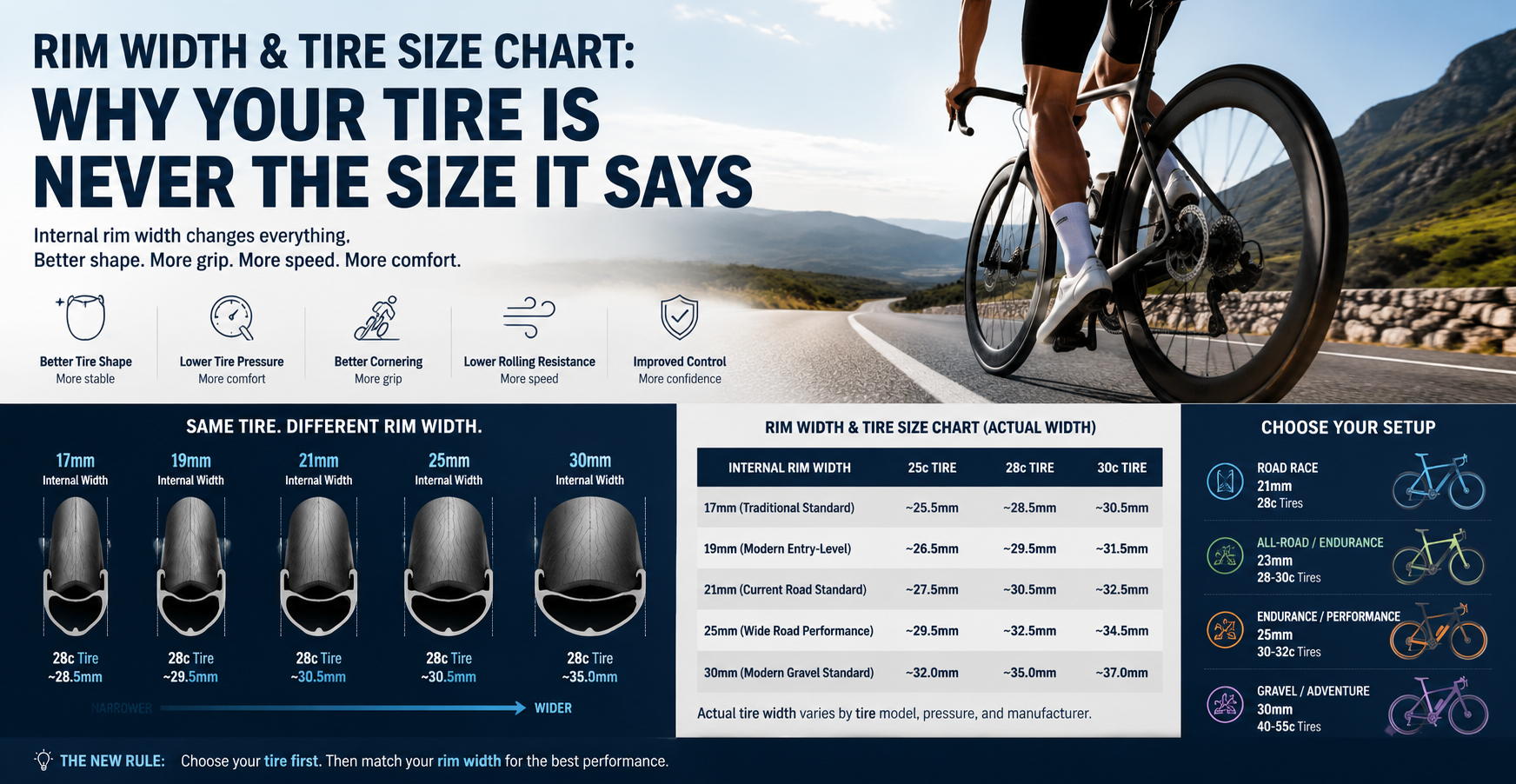

Rim Width & Tire Size Chart (Real-World Measurements)

Below is a simplified real-world reference showing how the same tire changes depending on internal rim width:

1.Why this matters practically？
If your frame has 28mm maximum tire clearance, and you mount a "25c" tire on a 25c internal rim, you're likely running 29-30mm of actual rubber. You might be rubbing your chainstay and not know why. Or wondering why that tire feels so planted — it's because you're effectively on a 30c.

2.It Controls Your Optimal Tire Pressure — More Than You Think
Here's the counterintuitive one.
Conventional wisdom said: wider tire = lower pressure. But the real relationship is: wider rim + wider tire = lower optimal pressure for the same weight and rolling efficiency.
When a tire sits on a wider rim, its sidewall profile changes from a tall, narrow "lightbulb" shape to a shorter, rounder arc. That rounder profile is structurally more efficient — it distributes casing tension more evenly, which means the tire can support the same rider weight at lower pressure without "squirming" or risking pinch flats.
Practically: a 70kg rider on a 25c tire on a 17c rim might run 90psi front, 95psi rear. The same rider, same tire, on a 21c rim can run 80/85psi and actually roll faster — because the lower pressure allows better road compliance without the efficiency loss from an inefficient casing shape.
If you've ever wondered why those "optimal tire pressure" calculators give you a different number than what feels right — rim width is often the missing variable they're not accounting for.

3. It Shapes How Your Tire Handles at the Limit
This is the one competitive riders care about most, and the one that's hardest to spec-sheet.
A tire mounted on an inappropriately narrow rim develops that lightbulb sidewall profile we mentioned — but when you lean into a corner, this shape is aerodynamically and mechanically unstable. The tire wants to "roll over" onto its shoulder rather than track cleanly through the arc. Riders describe it as vagueness, or a "squirmy" feeling, at lean angles.
A properly matched wide rim gives the tire a rounder, more symmetrical arc. When you lean, the contact patch transitions smoothly across the tread rather than suddenly transferring to the sidewall. The result is a more linear, predictable feel through corners — which translates to actual confidence at speed, not just a spec-sheet number.
This is one reason why the move to wider rims felt like a handling upgrade to so many riders, not just a comfort upgrade.

Where the Market Is Now？ And Where It's Going？

To give you a clear picture of where your wheelset decision sits in 2025:
The mainstream sweet spot has moved to 21c internal. This width optimally pairs with 25-28c tires — the range that now covers everything from crit racing to gran fondo riding. If you're buying a "do everything" road wheelset today and it has less than 19c internal, you're buying yesterday's geometry.
The performance frontier is at 25-28c internal. Zipp's 303 Firecrest (25c internal), ENVE's SES range, and Lightweight's latest wheels are all built around the assumption that serious road riders will run 28-32c tires. The aero optimization on these rims is specifically tuned for the wider tire profiles that result.
The 30c internal mark is where road meets gravel. Our own widest option sits here — designed for riders who want maximum comfort, maximum tire volume, and the ability to run 32c+ tires without compromise. This is the wheelset for the rider who wants one wheelset to cover road, light gravel, and endurance events.
And the 23-25c internal range — where most of our road wheelsets sit — remains the performance-value center of the market. It's not conservative; it's calibrated. These widths work with the 25-28c tires that 80% of road cyclists actually ride, without the frame clearance complications that come with 30c+ setups on older road geometry.

Why 30mm Internal Width Is Emerging?

As gravel tires continue to grow from 40mm to 45mm, 50mm, and beyond, wheel manufacturers are responding with wider rim platforms designed to better support modern tire sizes.
While 25mm internal width was once considered wide for gravel applications, some of the latest wheelsets have already moved to 30mm internal width. For example, the UPVINE gravel wheelset features a 30mm internal rim width specifically developed for 45–55mm tires, providing improved sidewall support, lower-pressure stability, and better control on rough terrain.
This reflects a broader industry trend: modern gravel wheels are increasingly being designed around tire volume rather than simply adapting traditional road wheel dimensions.

Below is the gravel which designed by UPVINE WHEELSET.

How to Choose the Right Rim Width?

Stop starting with rim width. Start with the tire you want to run, then work backwards.
If you're running 25c:
→ 19-21c internal is your optimal range. You'll get actual widths of 27-28mm, which is where the rolling resistance and handling sweet spot lives for this tire size.
If you're running 28c:
→ 21-23c internal. You'll run a true 30mm or so, with excellent casing shape and pressure flexibility. This is the current performance benchmark for road endurance and gran fondo riding.
If you're running 30c or above:
→ 25-30c internal. At this point you're building a true wide-tire road setup, optimised for maximum comfort and the ability to genuinely lower pressure into the 60-70psi range without handling compromise.
One practical check before you buy: Measure your frame's actual tire clearance with calipers—not the manufacturer's stated clearance, which often has less margin than advertised. Then use the table above to calculate the actual tire width you'll be running on your chosen rim. You want at least 4-5mm of clearance on each side between tire and frame.

The New Rule of Wheel Design

The old rule was:
Choose your rim → then pick a tire
The modern rule is:
Choose your tire → then match your rim
Because performance today is no longer defined by components alone.
It is defined by the system between tire and rim.

In a nutshell

The rim width conversation used to be for nerds. Now it's for anyone who wants to ride fast and understand why their setup feels the way it does.
The market has moved. Wider rims aren't a trend — they're the settled science of how to make a road tire perform at its best. The question is no longer "should I go wider?" It's "how wide is right for my tire, my bike, and the way I ride?"
Get that match right, and everything else — rolling speed, handling confidence, tire pressure, comfort — falls into place without changing a single other thing about your setup.
