Shanghai, May 5, 2026 – High-performance bicycle component brand UPVINE has officially unveiled its new flagship aerodynamic wheelset, the PRO PLUS, alongside full details of its aerodynamic design and development methodology. Led by UPVINE’s chief aerodynamic development engineer Ito, the development marks the brand’s first full disclosure of a closed-loop iterative design workflow integrating rim parametric calibration specifications and Multi-Physics CFD (Computational Fluid Dynamics)simulation analysis.

This launch not only represents another major leap forward for UPVINE in the aerodynamic performance of carbon-fiber wheel rims but also stands as a landmark advancement for the bicycle manufacturing industry toward high-precision digital R&D.

Moving Beyond Conventional Empirical Design: Digitized Five-Point Parametric Calibration Standard
Traditional rim design largely relies on empirical geometric stretching and manual spline adjustment, resulting in lengthy development cycles without rigorous mathematical underpinnings. For the PRO PLUS project, UPVINE abandoned outdated development practices and established a database-powered, parameter-driven digital modeling and assembly specification system.

1.Foundational Golden Reference Framework
The R&D team built the core design benchmark around the Top Plane. A vertical construction line fixed at a 322 mm radius defines the rim’s outer physical boundary diameter, with high-precision fitting applied to the outer tire circular profile, the rim’s outer design frame and inner width boundary. Such parametric assembly constraints guarantee perfect geometric continuity whenever rotational axis deflection angles are modified.

2. Proprietary Five-Point Parametric Definition Method
To build a high-dimensional database populated with dimensional data for rim outer contour curvature, UPVINE engineered its exclusive Five-Point Parametric Definition Method, which sets five critical control points along the spline curve:

Point 1: Defines the fillet radius starting from the width set by single-side tire casing thickness
Points 2 & 3: Govern maximum rim width and transitional gradient across the midsection of the rim profile
Point 4: Precisely pinpoints the inflection point governing curvature shift at the rim’s maximum-width section
Point 5: Sets the slope angle at the rim’s trailing edge, directly dictating the timing of airflow separation from the aerodynamic wake

By adjusting the axis coordinates and tangent control angles of these five calibration points, the engineering team can mathematically generate pure-U, pure-V, VU-type and UV-type rim geometries within a unified computational model. The resulting diverse rim profiles supply abundant sample datasets for CFD aerodynamic comparison, screening and optimization. Custom parametric linking tools for automated assembly were also developed to streamline end-to-end parametric modeling and automatic assembly workflows.

CFD Simulation Iteration: Scientific Optimization via Full-Condition Drag Testing

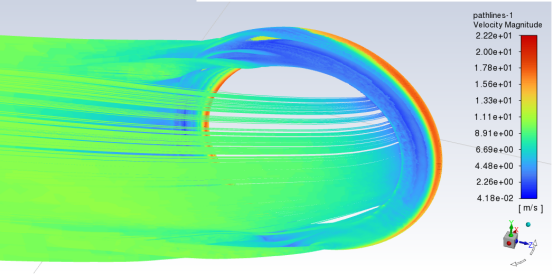

Leveraging a mature multi-physics simulation platform, UPVINE’s engineers ran numerical virtual wind tunnel testing across the four core rim profiles under crosswind yaw angles ranging from 0° to 15°, at test speeds up to 40 km/h and 50 km/h to replicate extreme riding conditions.

1.Core Macro Design Conclusions from Simulation Data

Simulation outcomes validated well-established aerodynamic principles and performance boundaries for each rim shape:
Pure-V Profile: Delivers superior teardrop-shaped frontal drag reduction under zero crosswind (0° yaw), with improving aerodynamic efficiency at higher speeds, yet drag spikes drastically once crosswind and non-zero yaw angles occur.
Pure-U Profile: Outperforms pure-V designs at yaw angles above 5° by suppressing boundary layer separation on forward-facing surfaces, delivering enhanced structural stability and turbulent flow containment.
UV-Focused & VU-Focused Hybrid Profiles: Each carries distinct strengths; VU-type rims deliver aggressive low-drag performance at minor yaw angles, while UV-type variants maintain lower cumulative drag under large crosswind deflection.

2. Real-World Race Condition Tuning & Emergence of Optimized UV2 Rim Profile
After shortlisting UV and VU hybrid profiles as primary candidates, UPVINE avoided design pitfalls stemming from isolated lab-only data by incorporating a weighted factor matrix reflecting authentic on-race operating scenarios:

Peloton Riding: Riders draft within the group with low power output, near-zero effective yaw angles and minimal aerodynamic drag impact.
Breakaway/Solo Effort: Power output hits 100%–120% FTP; unpredictable large yaw-angle crosswinds make aerodynamic efficiency critical.
All-Out Sprint: Speeds exceed 50 km/h at peak rider power, requiring exceptional boundary layer control under ultra-high airflow velocity.

Weighted around these three real-world usage cases, secondary aerodynamic iterations refined the base UV rim into the optimized UV2 geometry. Test data confirms the UV2 design achieves industry-leading minimal CDA values at both extreme test points (0° and 15° yaw), perfectly catering to solo breakaways and high-speed sprint performance demands.

Optimized Aerodynamic Transition Curves Derived from Tire-Rim Width Interaction. In detailed fine-tuning phases, UPVINE quantified aerodynamic coupling effects between outer tire width and rim flange width via comparative simulation of 30 mm and 32 mm tire sizes across all rim profiles:

30 mm tires deliver superior aerodynamic efficiency at 0° and 5° yaw angles
32 mm tires perform better under 10° and 15° crosswind deflection
Cumulative averaged drag data favors the 30 mm tire specification overall
The performance gap between the two tire widths narrows incrementally as riding speed rises, with marginal differences at maximum velocity

These findings validate the wide outer-rim aerodynamic advantage principle: when rim outer width (35 mm) exceeds tire width, smooth transitional curvature forms between the tire sidewall and rim flange. This preserves attached airflow, delays flow separation, suppresses vortex generation and cuts overall drag via targeted vortex control. Based on the research, UPVINE finalized the PRO PLUS’ golden aerodynamic pairing: a 35 mm oversized outer rim width engineered for optimal curvature transition paired with size C30 aerodynamic road tires.

Additional detailed CFD modeling assessed the aerodynamic penalty of protruding spoke nipple bosses, confirming 1 mm tall external mounting lugs incur an aerodynamic drag penalty equivalent to roughly one hundred-thousandth of total system drag – a negligible loss that enables robust structural lug design with no meaningful compromise to aerodynamics.

Final PRO PLUS Wheelset Technical Specifications After R&D Validation
Following dozens of parametric modeling cycles and multi-physics CFD optimization iterations rooted in the Five-Point Parametric Definition Method and granular detail refinement, UPVINE locked in definitive final specifications for the PRO PLUS wheelset:

External Rim Width: 35mm (delivers optimal curved transitional profile)
Rim Depth: 53mm / 63mm (balances cruising aerodynamics and crosswind handling performance)
Internal Rim Width: 25mm (perfectly compatible with modern wide-tire specifications)
Rim Profile Topology: Exclusive optimized UV2 rim shape engineered by UPVINE
Spoke Hole Count: 21 holes for front wheel / 24 holes for rear wheel (features refined externally raised spoke nipple bosses)

The launch of UPVINE PRO PLUS wheelset marks far more than a routine product upgrade and the debut of its Oversized Outer Width Aerodynamic Advantage Theory; it also solidifies UPVINE’s leading industry position in in-house independent R&D and fundamental multi-physics simulation technology. Moving forward, UPVINE will keep adhering to its engineering ethos of “Data guides design, real-world riding validates performance”, developing dominant aerodynamic cycling gear for riders across the globe.
