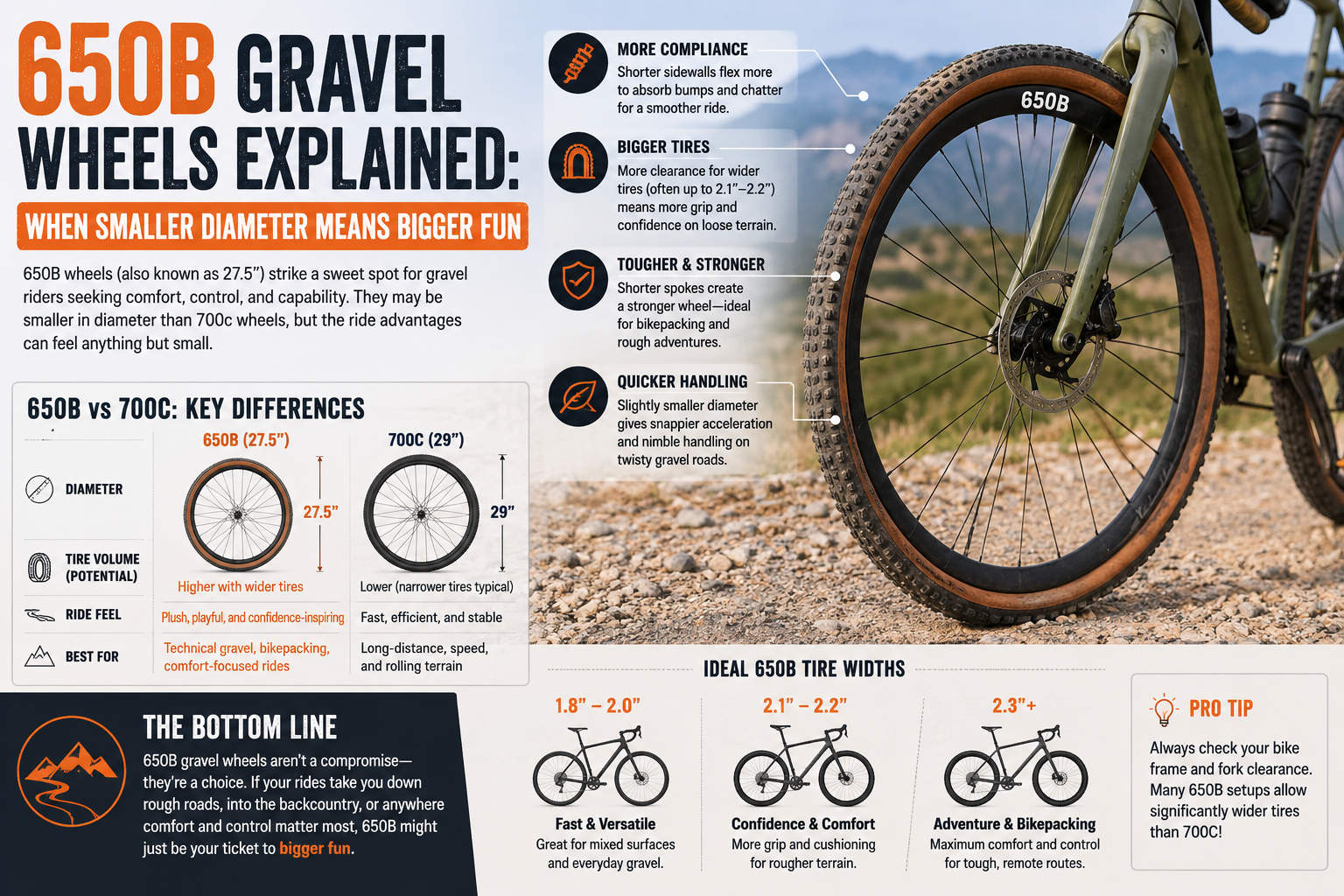

650b Gravel Wheelsets Explained: When Smaller Diameter Means Bigger Fun

For years, 700c has dominated the gravel bike market. Most new gravel bikes ship with 700c wheels, and nearly every gravel race is won on them. Yet, despite this trend, the 650b gravel wheelset retains a loyal fanbase, offering distinct riding advantages many gravel enthusiasts prefer.

Why Are Riders Talking About 650b Again?
Because gravel riding isn't only about speed. It's about exploring rough forest roads, technical singletrack, remote bikepacking routes, and all-day adventures where comfort and confidence matter just as much as efficiency.

A 650b gravel wheelset offers something unique: the ability to run larger-volume tires without dramatically changing your bike's geometry. The result is a ride that feels smoother, grippier, and surprisingly playful.

If you've ever wondered whether 650b wheels are still relevant in 2026, this guide explains exactly when the smaller diameter becomes the bigger advantage.

What Exactly Is a 650b Gravel Wheel?
Although "650b" sounds mysterious, it's simply another wheel standard.

The rim diameter of a 650b wheel is 38 mm smaller than a 700c wheel.
That smaller rim leaves additional room inside the frame, allowing riders to install much wider tires—often 47 mm to 2.1 inches—without exceeding the frame's clearance.
This is the real reason 650b exists in gravel cycling.
It isn't designed to make the bike smaller.
It's designed to make the tires bigger.

Why Smaller Wheels Can Feel More Fun
Most wheel discussions focus on speed.
Experienced gravel riders often focus on something different:
How does the bike feel?
A 650b wheelset changes that feeling in several important ways.

Bigger Tires Create More Grip
Because the wheel diameter is smaller, riders can fit significantly larger tires.
Typical combinations include:
650b × 47 mm
650b × 50 mm
650b × 2.0"
650b × 2.1"

More air volume means the tire conforms better to loose gravel, roots, rocks, and washboard surfaces.
Instead of bouncing across obstacles, the tire absorbs them.
That translates into noticeably improved traction during both climbing and descending.

Lower Tire Pressure Means More Comfort
Large-volume tires can safely run lower pressures.
Lower pressure provides:
-better vibration damping
-reduced rider fatigue
-improved control on loose terrain
-more confidence over rough surfaces

Many bikepacking riders describe switching to 650b as adding "free suspension" to a rigid gravel bike.
The effect becomes even more noticeable during rides lasting four to eight hours.

More Confident Cornering
A wider tire creates a larger contact patch.
On loose gravel this produces:
-more predictable steering
-better braking traction
-smoother corner exits

Rather than sliding unpredictably, the bike feels planted.
Technical riders often notice this immediately.

Improved Handling on Technical Terrain
One overlooked advantage of smaller wheels is agility.
Because rotational inertia is slightly lower, many riders find 650b bikes easier to:
-change direction
-manual over obstacles
-navigate tight switchbacks
-weave through rocky trails

The bike often feels more lively instead of simply faster.
That playful handling is one reason many adventure riders continue choosing 650b despite the industry's shift toward 700c.

When Does a 650b Gravel Wheelset Make Sense?
Contrary to popular belief, 650b isn't for everyone.
It's best suited for specific riding styles.
Adventure Gravel
If your rides regularly include:
-forest roads
-loose gravel
-rocky jeep tracks
-muddy trails
-rough descents

650b offers more comfort and traction than narrow, high-pressure tires.

Bikepacking
Loaded bikes become significantly more stable with larger tires.
Extra tire volume helps compensate for:
-camping gear
-water
-food
-bikepacking bags

Many experienced bikepackers prefer 650b because it reduces harsh impacts over consecutive long days.

Smaller Riders
Frame sizes below approximately 52 cm often benefit from 650b.
Advantages include:
-less toe overlap
-better proportional geometry
-more balanced handling
-improved tire clearance

Manufacturers increasingly recommend 650b as an option for riders using smaller frames.

Riders Who Prioritize Comfort
If your rides involve:
-5+ hour adventures
-mixed pavement and gravel
-rough chipseal
-washboard roads
The comfort gains often outweigh the small speed penalty.

The Downsides of 650b Gravel Wheels
No wheel size is perfect.
Before buying a 650b gravel wheelset, it's important to understand the compromises.
Slightly Slower Rolling Speed
On smooth gravel and pavement:
700c generally rolls faster.
The larger diameter crosses obstacles with less energy loss and maintains momentum more efficiently.
For competitive gravel racing, that's a meaningful advantage.

Limited Tire Selection
One of the biggest industry trends over the last several years has been the continued expansion of 700c gravel tires.
650b options remain available but are noticeably fewer.
Several riders on community forums also mention that replacement tires can sometimes be harder to source, especially while traveling.

Lower Bottom Bracket
Switching from 700c to 650b can slightly lower the bike.
Potential consequences include:
increased pedal strikes
slightly altered steering feel

This depends heavily on tire size and individual frame design.

650b vs 700c: Which Is Better?
The answer depends on your riding priorities.

There isn't a universally "better" wheel size.
Instead:
700c is optimized for speed.
650b is optimized for control.

That's why many experienced gravel riders own both wheelsets and swap them depending on the route. If you want a deeper head-to-head breakdown of ride feel, terrain suitability and performance gaps, read our full article: 700c vs 650b Gravel Wheelsets: Which Should You Choose?→

Community Opinions: What Real Riders Say
Looking beyond manufacturers, gravel cycling communities consistently echo the same theme:
Choose wheels based on where you ride—not on internet trends.
Many riders who switched to 650b praise the added comfort and confidence on rough terrain, while others still favor 700c for long, fast gravel events and mixed road riding. Several experienced cyclists even keep two wheelsets: a fast 700c setup for racing and pavement, and a high-volume 650b setup for technical adventures.

Buying Guide: What to Look for in a 650b Gravel Wheelset
If you're shopping for a new wheelset, pay attention to more than just wheel diameter.
Key features include:
Internal Rim Width
Modern gravel rims typically range from 25–30 mm internally, providing better support for 45–55 mm tires.

Tubeless Compatibility
Tubeless-ready rims allow lower tire pressures while reducing the risk of pinch flats.

Weight
Lighter wheels accelerate more quickly, but durability remains the priority for adventure riding.

Hub Quality
A reliable hub with fast engagement improves climbing responsiveness and technical riding.

Spoke Count
Many gravel wheelsets use 24 or 28 spokes, balancing stiffness, durability, and weight.
Intended Use

Ask yourself:

-Racing?
-Weekend gravel?
-Bikepacking?
-Technical singletrack?

The right wheelset depends on your primary riding style—not just the latest trend. For a complete checklist covering rim width, hub engagement, spoke count and tubeless standards for all gravel wheel sizes, check out our 2026 buying guide: Gravel Bike Wheelset Buyer’s Guide: What to Look for in 2026→

Final Thoughts
The cycling industry may increasingly standardize around 700c, but that doesn't mean 650b gravel wheelsets are obsolete. In fact, for riders tackling rough terrain, loaded adventures, or seeking a more forgiving ride, 650b remains one of the smartest upgrades available.

Rather than chasing outright speed, it emphasizes confidence, comfort, and control—the qualities that often define the best gravel experiences. If your ideal ride involves winding forest tracks, rocky descents, or multi-day bikepacking trips, a 650b setup can transform how your bike feels beneath you.

In the end, the debate isn't really 650b vs. 700c. It's about choosing the wheel that best matches your terrain, riding style, and goals. Sometimes, the smaller wheel really does deliver the bigger smile.
