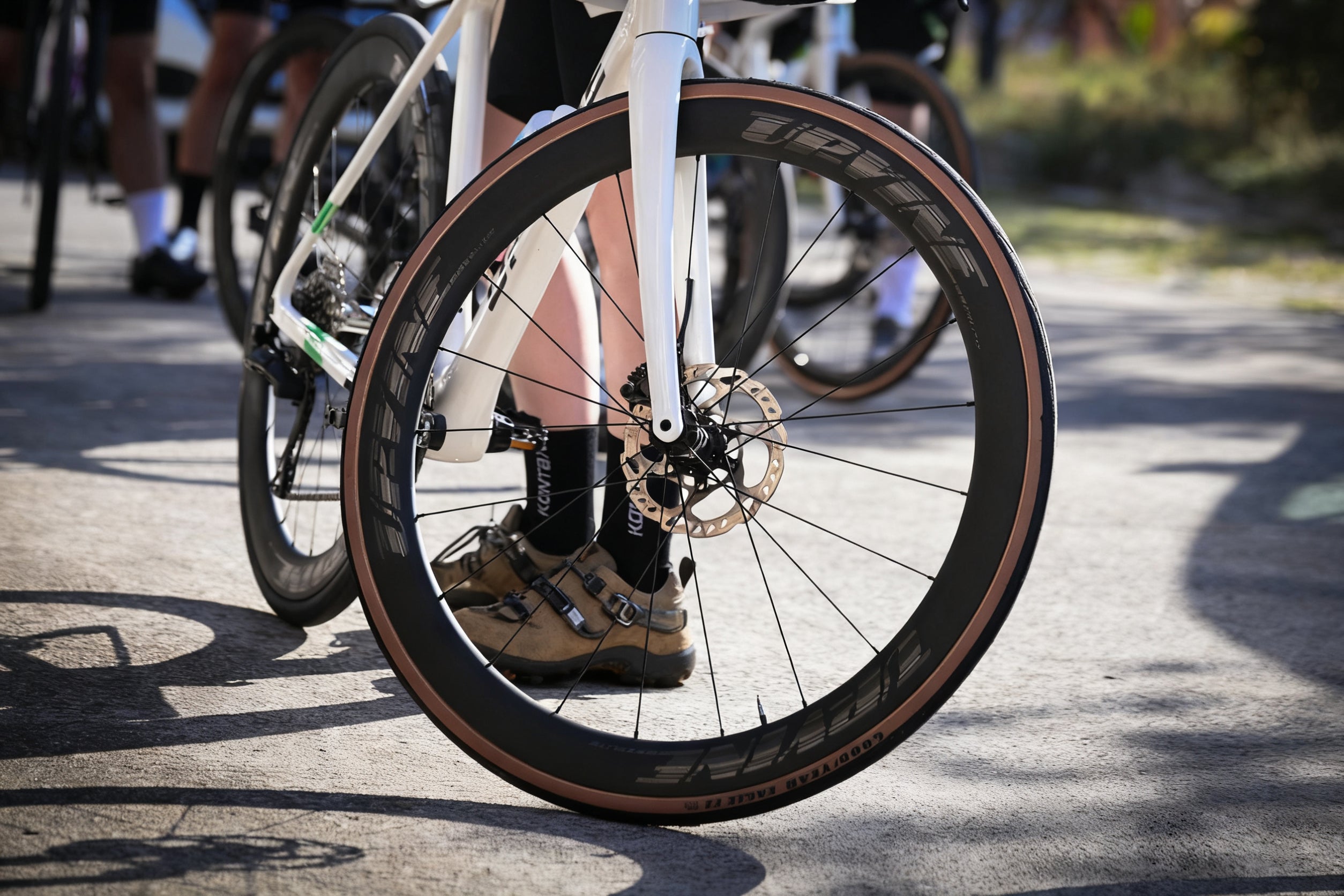

As the only rotating component that contacts the ground, a bicycle wheelset's performance directly affects efficiency, handling, and comfort. This comprehensive guide systematically analyzes the three core factors determining wheelset performance: structural design, material science, and spoke lacing methods. Whether you're selecting your first carbon wheelset or optimizing your racing setup, understanding these engineering principles enables informed decisions beyond marketing claims.
Part 1: Structural Design - Solving the Asymmetry Challenge
The Fundamental Problem: Inherent Wheel Asymmetry
Modern geared bicycles face a critical engineering challenge: rear wheel asymmetry. The cassette hub positions the drive-side (right) flange closer to the bike's centerline than the non-drive-side (left) flange. Similarly, front disc brake wheels exhibit asymmetry due to brake mounts. This geometric layout creates significantly different spoke angles on each side.
Consequences of Traditional Symmetric Designs:
- Drive-side spokes have smaller angles and higher lateral stiffness
- Non-drive-side spokes have larger angles and lower lateral stiffness
- Under pedaling forces, the rim tends to shift toward the non-drive side
- In rim brake systems, this causes brake pad rubbing
- In disc brake systems, lateral deflection still reduces efficiency and handling precision
- Tension imbalances compromise power transfer and wheel longevity
Modern Engineering Solutions for Asymmetry
1. Asymmetric Hub Flanges
Manufacturers increase the drive-side flange diameter while reducing the non-drive-side diameter. This balances spoke angles and optimizes tension distribution across both sides, creating a more symmetrical force profile.
2. Offset Rim Technology (Eccentric Rim Design)
Spoke holes are offset toward the non-drive side, giving spokes more favorable bracing angles. This compensates for the inherent angle difference and represents one of the most effective solutions for mitigating asymmetry effects.
3. 2:1 Spoke Lacing Pattern
This innovative approach uses two spokes on the drive side for every one spoke on the non-drive side. The single non-drive spoke balances the combined tension of two drive-side spokes, achieving equilibrium through spoke count rather than geometry alone.
4. Frame System Integration (AI Boost Technology)
Pioneered by Cannondale, this system-level solution redesigns the rear triangle with asymmetric chainstay offset, aligning the rim with the bottom bracket axis. While offering theoretical spoke symmetry perfection, it sacrifices universal wheel-frame compatibility.
Part 2: Materials Science - How Elastic Modulus Defines Performance
Material selection establishes the upper and lower boundaries of wheelset performance. The critical indicator is elastic modulus—a material's inherent resistance to deformation under load.
Rim Materials Comparison
Carbon Fiber Composites: The High-Performance Standard
Carbon fiber dominates modern high-end wheelsets for compelling reasons:
- Exceptional specific stiffness (stiffness-to-weight ratio)
- Superior specific strength (strength-to-weight ratio)
- Enables deep-section aerodynamic profiles without weight penalty
- Minimal deformation under load ensures direct power transfer
- Monocoque construction allows integrated aerodynamic features
- Optimal for racing, long-distance riding, and weight-conscious applications
Aluminum Alloy: The Practical Alternative
Traditional aluminum remains relevant in specific contexts:
- Excellent ductility and fatigue resistance
- Significantly lower manufacturing cost
- Higher density than carbon at equivalent strength
- More prone to permanent deformation under extreme impact
- Ideal for entry-level wheelsets, training wheels, and budget-conscious riders
Spoke Materials: The Performance Spectrum
1. Steel Spokes - The Proven Standard
Despite higher density, steel remains the mainstream choice for premium wheelsets:
- Exceptionally high elastic modulus and tensile strength
- Maintains stability under high tension
- Provides precise, predictable ride feedback
- Excellent corrosion resistance (stainless variants)
- Optimal balance of performance, durability, and cost
2. Carbon Fiber Spokes - Maximum Performance
Carbon spokes represent the ultimate in stiffness:
- Highest elastic modulus of any spoke material
- Virtually zero perceptible tensile deformation
- Uncompromising direct power transfer
- Extremely rigid, immediate road feel
- Lower tolerance for sudden overload (brittle fracture risk)
- Premium pricing
- Best suited for smooth surfaces and weight-obsessed racing applications
3. Titanium Spokes - The Comfort Specialist
Titanium occupies a niche performance category:
- Elastic modulus approximately 50% of steel
- Noticeably "softer" feel at identical tension
- Outstanding vibration damping characteristics
- Unique, compliant riding experience
- Reduced lateral and drive stiffness versus steel
- Not recommended for aggressive acceleration or criterium racing
- Ideal for endurance riding, gravel, and comfort-prioritized applications
4. Aluminum Alloy Spokes - The Abandoned Option
Aluminum spokes offered theoretical advantages but practical limitations:
- Approximately 50% density of titanium (weight advantage)
- Tensile strength reduced by more than half
- Requires larger diameters to meet strength requirements
- Major manufacturers (including MAVIC) have discontinued aluminum spoke production
- Rarely seen in contemporary wheelset designs
5. High-Performance Polymer Spokes - Emerging Technologies
Beyond carbon fiber, advanced synthetic materials show promise:
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
- Aramid fibers
- PBO (polybenzoxazole) fibers
- Each presents unique trade-offs in weight, strength, durability, and cost
- Limited adoption due to manufacturing challenges and cost considerations
Part 3: Spoke Lacing Methods - Straight-Pull vs. J-Bend Engineering
The connection method between hub and rim profoundly influences wheelset character and performance.
Straight-Pull Lacing: Direct Force Transfer
Design Principles:
Spokes feature straight heads at both ends, creating direct tension between hub flange and rim spoke bed. This eliminates the mechanical advantage of crossed lacing but creates the most direct force transmission path.
Performance Characteristics:
- Minimal energy loss through elastic deformation
- High transmission efficiency
- Relatively lighter weight (no J-bend, shorter spoke lengths)
- Relies entirely on high spoke tension for lateral stiffness
- Demands exceptional hub flange and rim spoke bed strength
- Requires precise manufacturing tolerances
Optimal Applications:
- Road racing wheelsets
- Cross-country (XC) mountain bike wheels
- Time trial and triathlon bikes
- Weight-conscious applications
- Smooth surface riding
Ride Feel: Firm, responsive, immediate feedback with high lateral stiffness
J-Bend Lacing: Proven Versatility
Design Principles:
Spokes feature a 90-degree bend on one end, hooking into dedicated hub flange slots. This traditional design allows spokes to exit flanges at various angles, enabling crossed lacing patterns that optimize mechanical leverage.
Performance Characteristics:
- Crossed-spoke structure provides inherent stability
- High tolerance for individual spoke tension loss
- Wheel remains functional even with broken spokes
- Lower hub manufacturing precision requirements
- Greater error tolerance during wheel building
- Enables diverse lacing patterns (radial, 2-cross, 3-cross, 4-cross)
Optimal Applications:
- Downhill (DH) mountain biking
- Enduro and trail riding
- BMX and aggressive riding
- Touring and bikepacking
- Entry-level wheelsets
- Any application requiring maximum durability
Ride Feel: Slightly more compliant, forgiving, with excellent shock absorption
Part 4: Integrated Performance Analysis
Modern high-performance wheelsets synthesize these engineering principles into cohesive systems. Consider a premium road disc brake wheelset:
Structural Elements:
- Offset rim design or asymmetric hub flanges address inherent asymmetry
- 2:1 spoke lacing pattern balances drive-side and non-drive-side tension
- Optimized spoke bracing angles maximize lateral stiffness
Material Optimization:
- Carbon fiber rim provides aerodynamic profile with minimal weight
- High-grade stainless steel spokes balance stiffness and resilience
- Precision-machined aluminum or carbon hub shells
Lacing Integration:
- Straight-pull design maximizes power transfer efficiency
- High spoke tension ensures lateral stiffness
- Minimal spoke count reduces aerodynamic drag
Conclusion: Making Informed Wheelset Decisions
Bicycle wheelset technology represents precision engineering at its finest. From overcoming fundamental structural asymmetry to leveraging materials science and optimizing lacing techniques, every design choice involves careful trade-offs.
Key Takeaways:
- No "perfect" wheelset exists—only the most suitable choice for your specific riding style, terrain, and priorities
- Structural asymmetry solutions (offset rims, asymmetric hubs, 2:1 lacing) are essential for modern performance
- Material selection fundamentally defines stiffness, weight, comfort, and durability boundaries
- Lacing methods shape the wheelset's character between efficiency and resilience
Future Developments:
Continued advancement in materials science (novel composites, graphene-enhanced carbon), manufacturing innovation (3D-printed titanium hubs, automated spoke tensioning), and integrated design approaches promise further performance gains.
Understanding these three pillars—structure, materials, and lacing—empowers cyclists to cut through marketing hype and make rational decisions aligned with their riding goals. Whether prioritizing race-day performance, all-day comfort, or bombproof reliability, informed wheelset selection begins with engineering fundamentals.
FAQ: Common Wheelset Questions
Q: Are carbon wheels worth the investment? For racing, performance riding, and weight-conscious applications, carbon offers measurable advantages in stiffness, aerodynamics, and weight. For casual riding, training, or budget-limited scenarios, quality aluminum provides excellent value.
Q: Which spoke material should I choose? Steel spokes offer the best all-around performance for most riders. Carbon spokes suit racing applications where maximum stiffness justifies the cost. Titanium spokes excel for comfort-focused endurance riding.
Q: Straight-pull or J-bend spokes? Straight-pull optimizes efficiency and weight for racing. J-bend provides durability, serviceability, and versatility for aggressive riding, touring, or general use.
Q: How important is wheel asymmetry correction? Very important for rear wheels and front disc wheels. Quality wheelsets incorporate offset rims, asymmetric hubs, or 2:1 lacing to address this fundamental engineering challenge.
Q: Can I mix different spoke materials? While technically possible, it's not recommended. Different elastic moduli create uneven tension distribution and unpredictable handling characteristics.
